8x12-LT Lean To Shed Plans Emailed

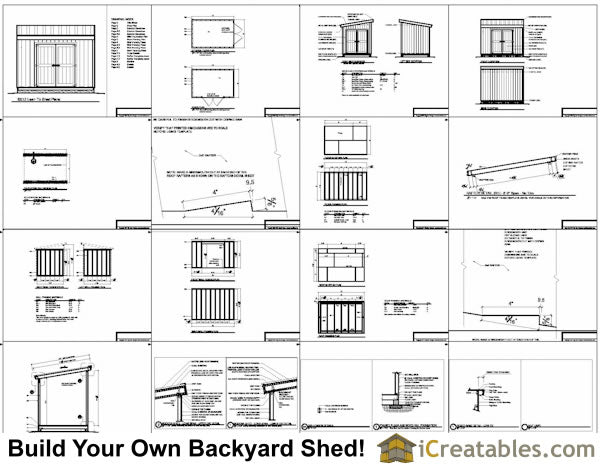

8x12 Lean To Storage Shed Plans Include The Following:

• Materials List:The 8x12 Lean To shed plans come with a complete materials list that is broken down by parts of the shed.
• 5 Foundations: There are 5 different foundations are included in the plans; Wood skid, Concrete slab, Concrete Block Pier, Poured Concrete Pier and Precast pier.
• Floor: 2x6 floor joists at 16" on center with 3/4" floor sheathing.
• Walls Framing: 2x4 framing at 16" on center with a double top plate, just like a home is framed.
• Wall Height: The lower shed wall height is 7'-7", the higher wall is just over 8'-10".

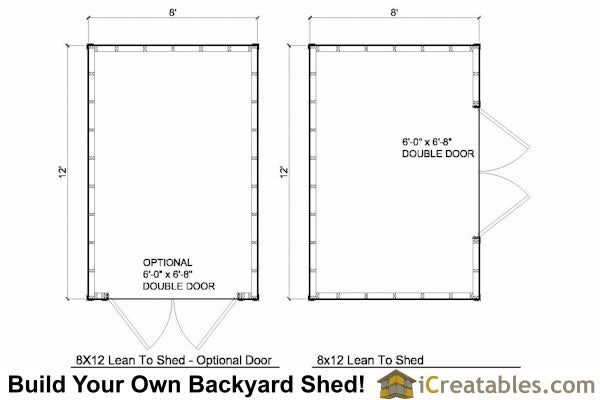

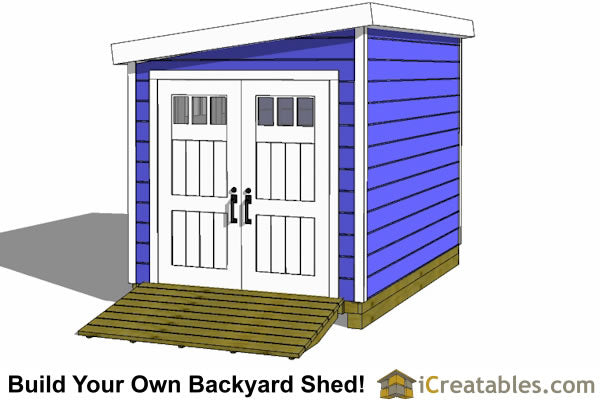

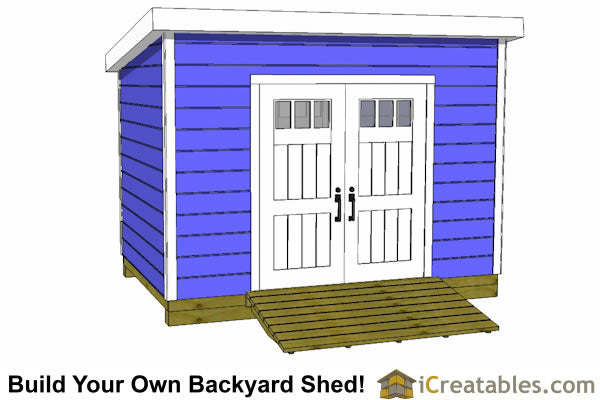

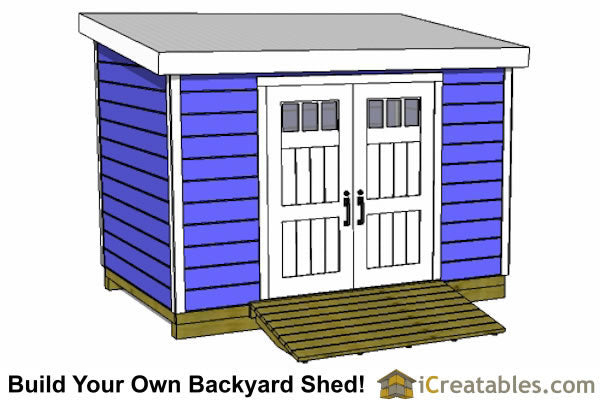

• Doors: The doors are a pair of 3068 pre-hung, factory made doors for ease of installation. A single door may be installed if desired.
• Window: There are no windows on the plans but windows can be added on any wall.

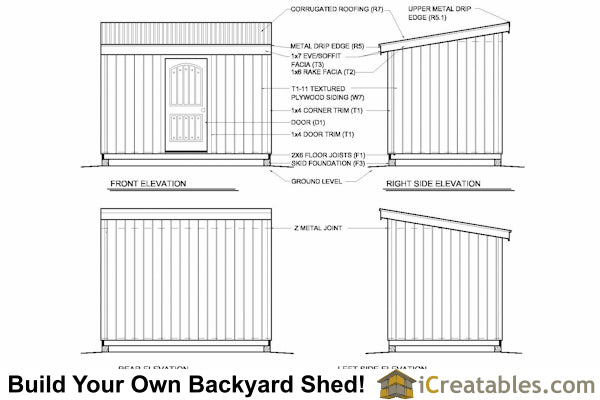

• Siding: Textured Plywood siding is what is shown on the plans. You may add or substitute other sidings such as cedar shingles or horizontal lap siding or vinyl siding.
• Roof: The roof is framed using 2x6's to build the rafters. It is sheeted with 1/2" O.S.B. The plans give you a template and dimensions for the birdsmouth cut angles.
• Roof Pitch: 2/12, this means that for every 2 inches of rise there is 12 inches of run horizontally.
• Roof Overhang: 6" on the front and back. 1" on the sides.
• Roofing = Corrugated metal roofing.
• Trim = 1x4 and 1x6 wood, masonite or cement trim materials are used to finish the corners, roof eves, facia, and door.
• Floor Load: 50 pounds per square foot for framed floors.
• Roof Snow Load: 40 pounds per square foot. This is more than adequate for most areas. If you live in an area with a high snow load you should check with your local building department for your local snow load. Contact us and we can specify stronger roof framing.
