8x12-GB Gambrel Shed Plans Emailed

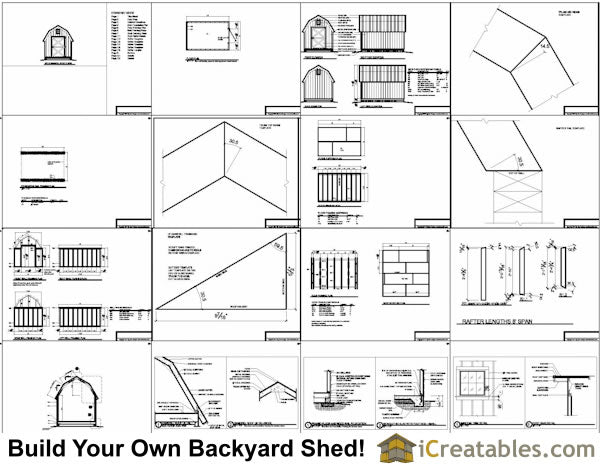

8x12 Gambrel Shed Plans Include The Following:

• Materials List:The 8x12 gambrel shed barn plans come with a complete materials list that is broken down by parts of the shed.
• 5 Foundations: There are 5 different foundations are included in the plans; Wood skid, Concrete slab, Concrete Block Pier, Poured Concrete Pier and Precast pier.
• Floor: 2x6 floor joists with 3/4" floor sheathing.
• Walls Framing: 2x4 framing at 16" on center with a double top plate, just like a home is framed.
• Wall Height: The shed wall height is 5'-4". The gambrel barn roof makes the height inside over 9' tall!
• Door: Two door Options depending on wall height

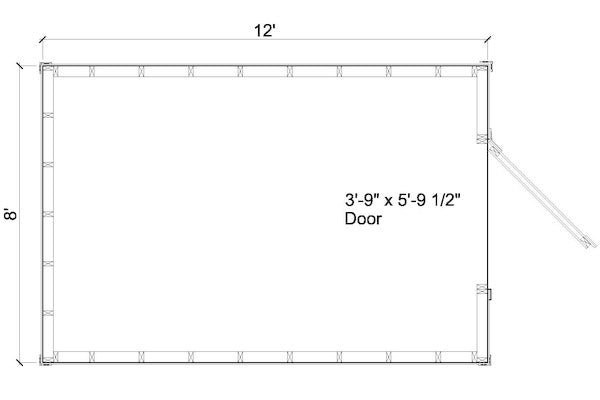

  • 3'-9" x 5'-9 1/2" door is built using sandwich construction for strength and durability. Our door plan shows you how to build a shed door that will outlive the shed. The shed door is built using a 2x4 inner frame faced on the inside with 1/2" O.S.B. and on the outside there is a layer of T-111 to match the rest of the shed. We use 3 hinges on the doors and the screws go into the inner 2x4 frame of the door to give extra strength.
  • Factory Built door on pre hung jamb, for taller wall option
• Siding: T-111 exterior siding. Other sidings such as vinyl or board and batten may be used.
• Roof: The roof is framed using 2x4's to build the trusses. It is sheeted with 1/2" O.S.B. The plans give you the dimensions and cut angles so you can build the roof rafters on the ground and then put them up on the top plates.
• Roof Pitch: The gambrel roof has a double roof pitch.
• Roof Overhang: 6" on the eves and soffits
• Roofing: Metal roofing or 25 year asphalt shingles.
• Trim: 1x4 and 1x6 wood, masonite or cement trim materials are used to finish the corners, roof eves and facia, and door.
• Floor Load: 50 pounds per square foot for framed floors. You don't want your shed floor to feel spongy.
