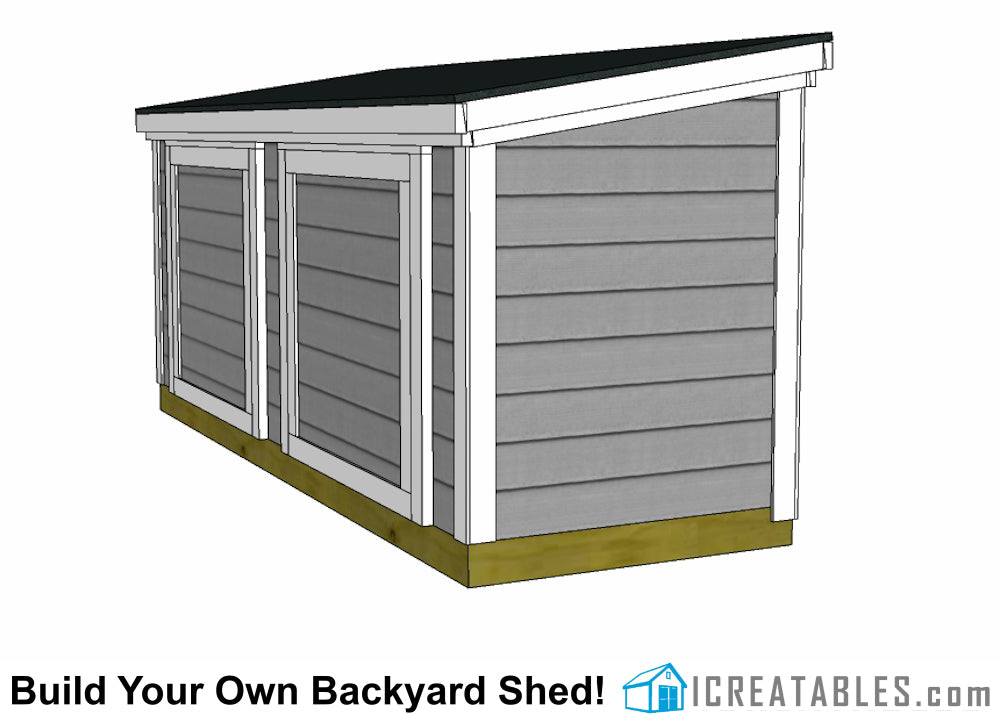

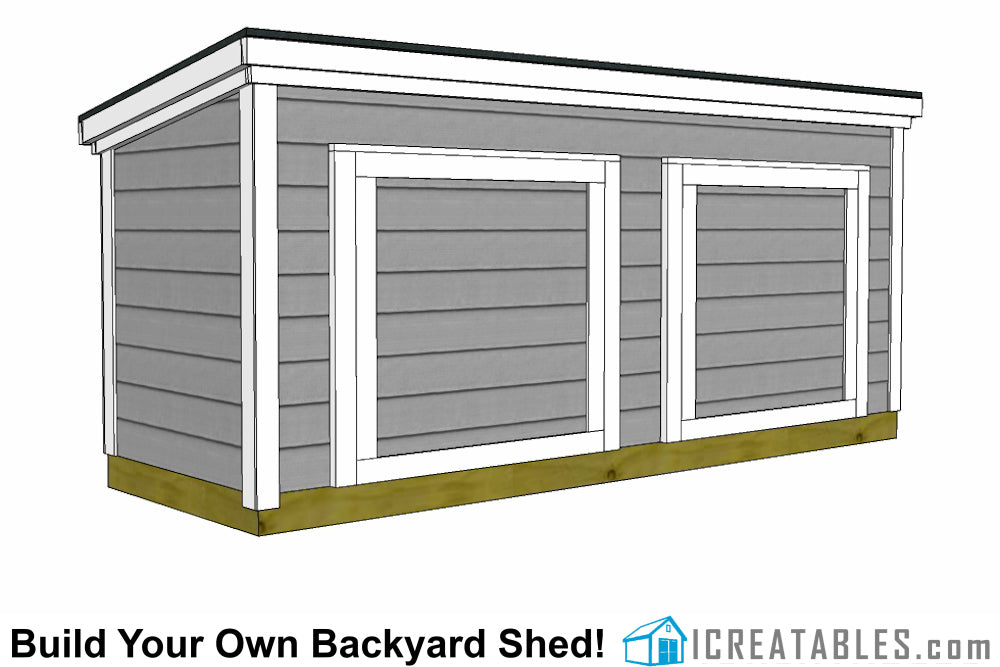

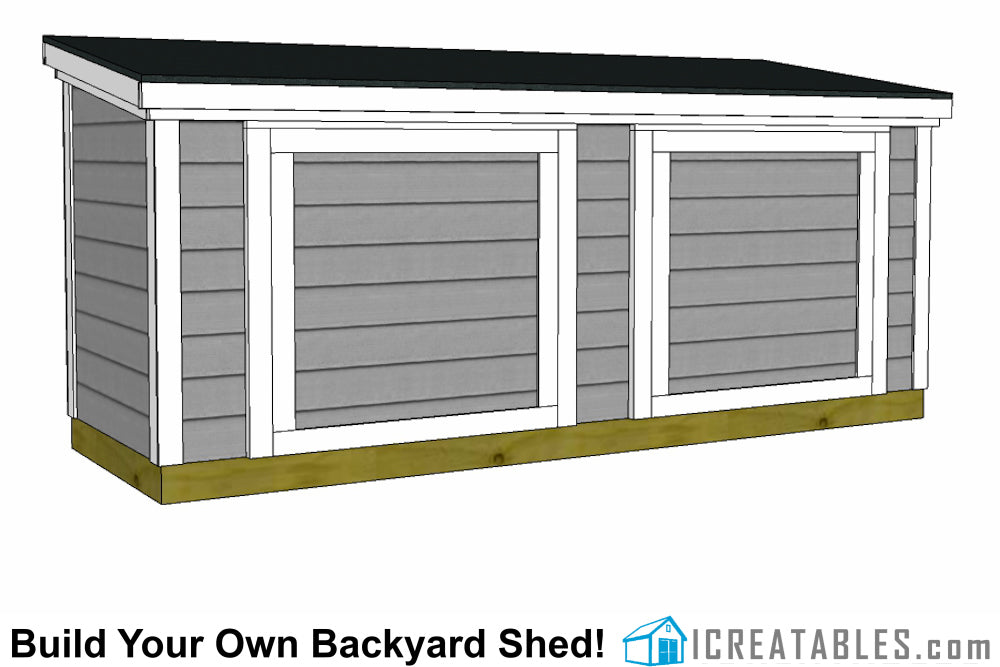

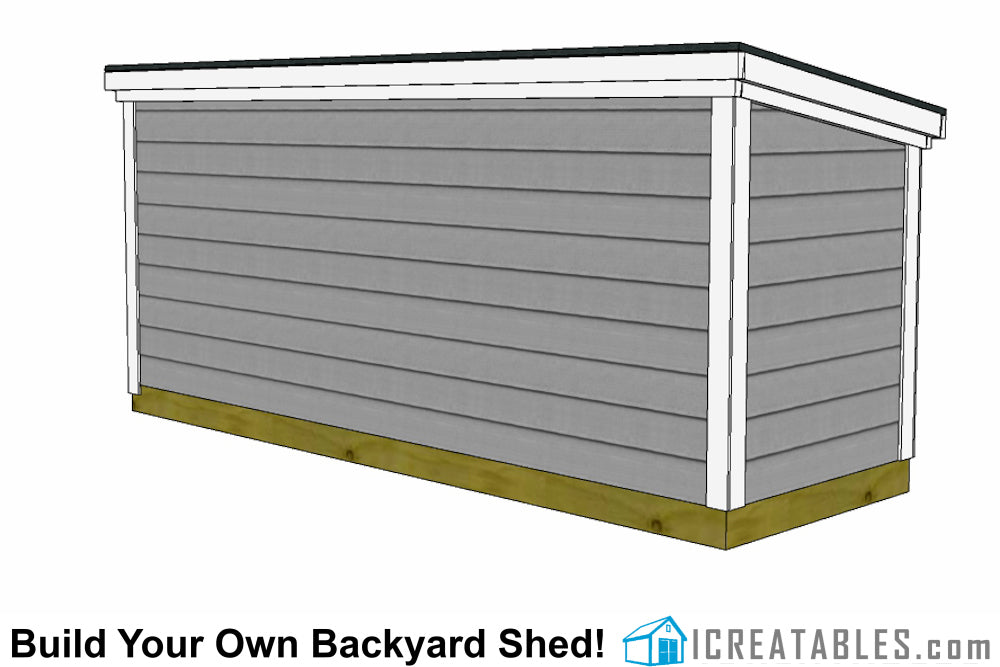

4x12-LT6 Lean To Shed Plans Emailed

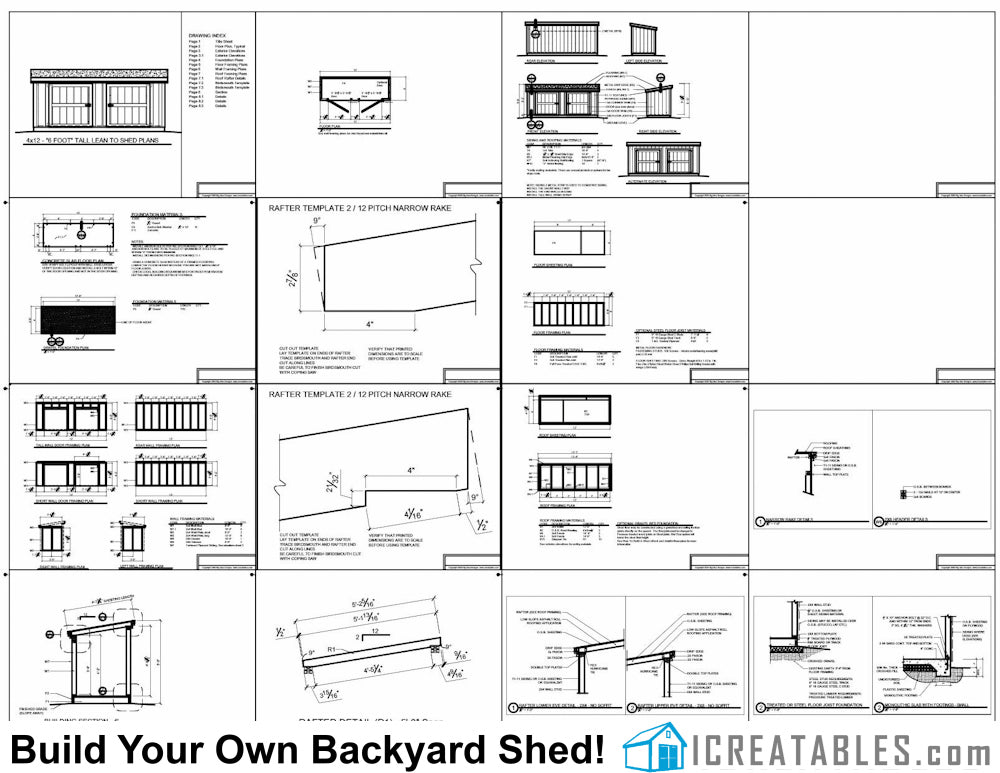

Lean To Shed Plans Include The Following

• Foundation: Wood Joists on Gravel bed or Concrete slab.
• Floor: 2x6 treated floor joists with 3/4" floor sheathing.
• Walls Framing: 2x4 framing at 16" on center with a double top plate, just like a home is framed.
• Wall Height: The shed front wall height is 4'-2" above the floor level for the short wall and 4'-111/2" for the taller wall

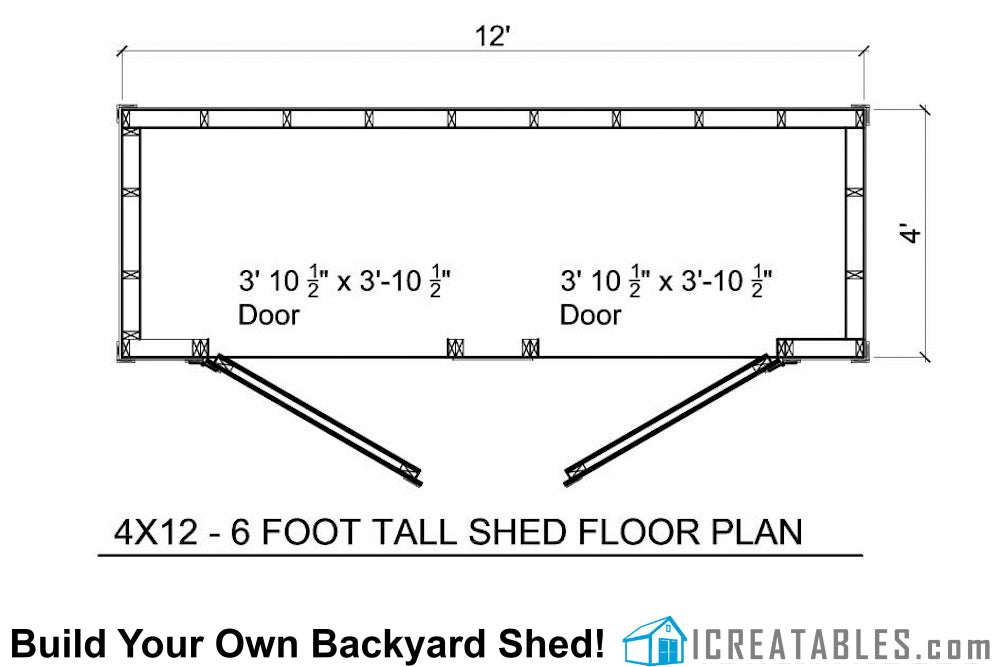

• Door: 3'-10-1/2" x 3'-10-1/2" door home built door
• Siding: T-111 exterior siding. Other sidings such as vinyl may be used.
• Roof = The roof is framed using 2x4's to build the rafters. It is sheeted with 7/16" O.S.B. The plans give you the dimensions and cut angles so you can build the roof rafters on the ground and then put them up on the top plates.

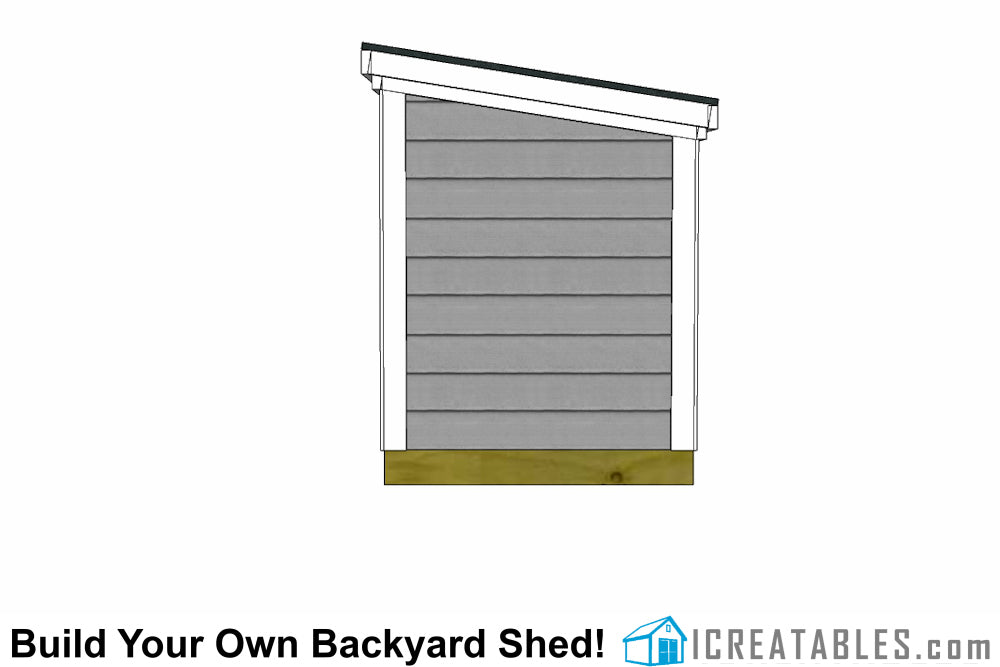

• Roof Pitch: 2/12, this means that for every 2 inches of rise there is 12 inches of run horizontally.
• Roof Overhang: 4" on the front and back. 1" on the sides.
• Roofing = Asphalt roll roofing is specified for the low slope roof. Any low slope roofing may be used. Check with your local roofing supplier for suggestions for low slope roof applications.
• Trim = 1x4 wood, masonite or cement trim materials are used to finish the corners, roof eves, facia, and door.
