12x16-M1 Modern Shed Plans Emailed

12x16 Modern Shed Plans Specifications Overview

• Foundation: 2 foundations are included in the plans; Wood skid and Concrete slab.
• Floor: 2x6 floor joists with 3/4" floor sheathing.
• Walls: 2x4 framing at 16" on center, 7/16" O.S.B. sheeting that allows most sidings to be applied. The lower shed wall height is 7'-7"

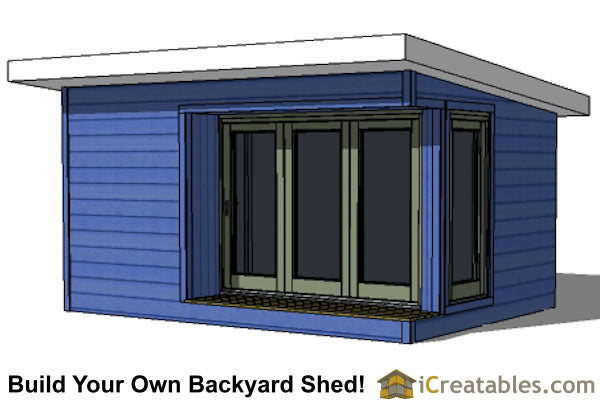

• Door: The specified door is a 9'x8' full glass vinyl door with one panel operable.
• Window: The specified window is a 3'x8' vinyl window that is installed at floor level.
• Roof: The roof is framed using 2x8's at 24" on center. It is sheeted with 1/2" O.S.B.
• Roof Pitch: 1/12, this means that for every 12 inches of run horizontally there is 1 inches of rise.
• Roofing: PBR low slope corrugated metal.
• Siding: 1x6 Tongue and groove siding is specified on the plans to be hung vertically. Most sidings that can be attached to O.S.B. sheeting like Vinyl siding, cement board sidings, lap sidings, metal panel or metal corrugated and stucco, can be also used.
