12x16-GD Garage Door Shed Plans Emailed

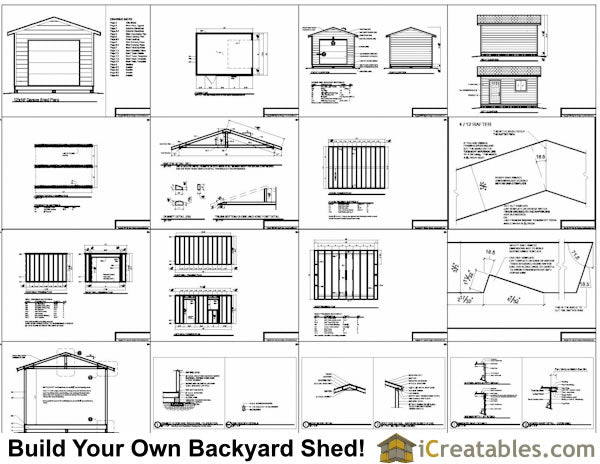

12x16 Shed Garage Plans Specifications Overview

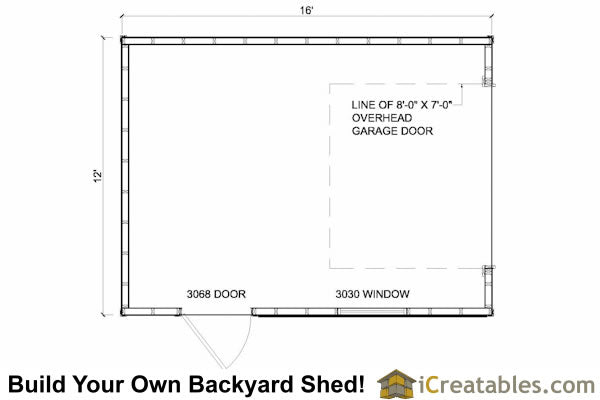

• Options: Plans show options for 3030 window. The framed shed floor can be constructed using O.S.B. sheeting or 2x6 boards.
• Foundation: There are 2 different foundations included in the plans; 6x6 Wood skid or Concrete slab.
• Floor: 2x6 floor joists at 16" on center with 3/4" floor sheathing or 2x6 Treated lumber.
• Walls: 2x4 framing at 16" on center with a double top plate and O.S.B. sheeting, just like a home is framed.

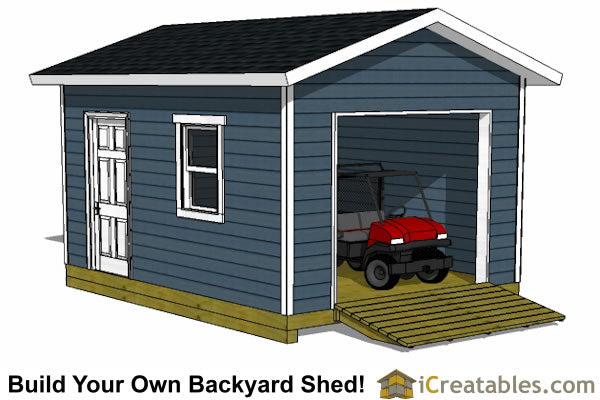

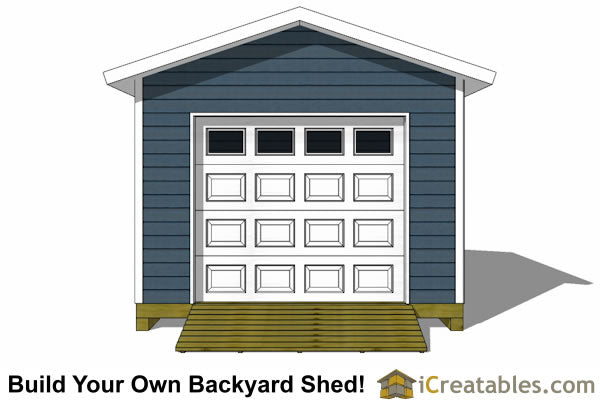

• Door: The 12x16 shed with garage door uses a 4 panel overhead garage door.
• Window: The 3030 window is a common vinyl framed single hung window.
• Roof: The roof is framed using 2x4's to build rafter trusses.
• Roofing: The shed roofing is 25 year asphalt shingles.
• Siding: Vinyl siding is specified but this can be changed to use most common sidings like stucco, T1-11, or cement board siding..
• Trim: 1x6 wood, masonite or cement trim materials are used to finish the roof eves and facia. Corner, door and window trims vary depending on siding type used.
