12x10-LTO Lean To Open Shed Plans Emailed

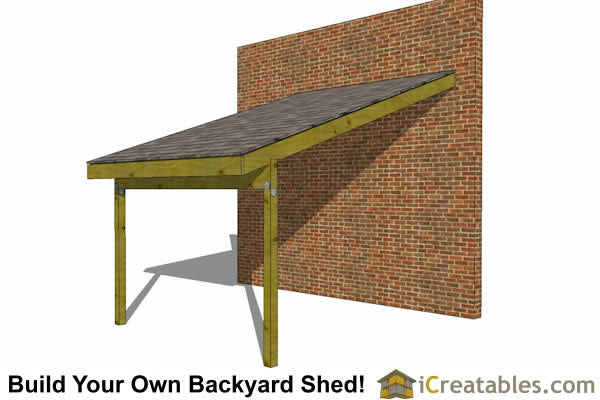

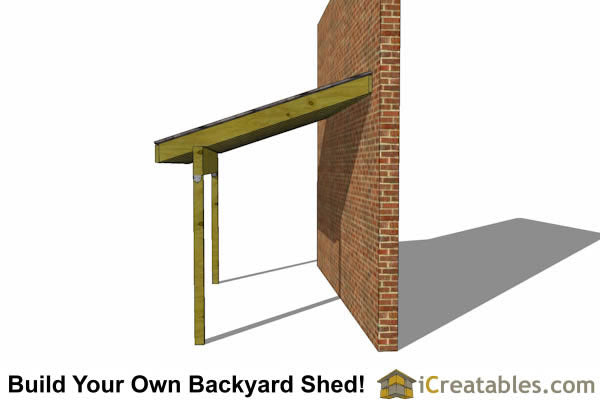

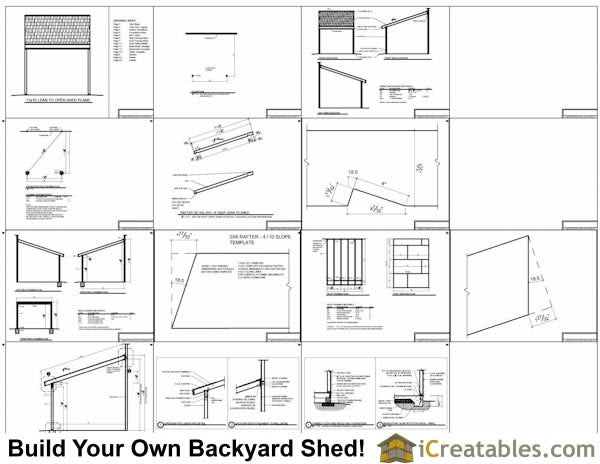

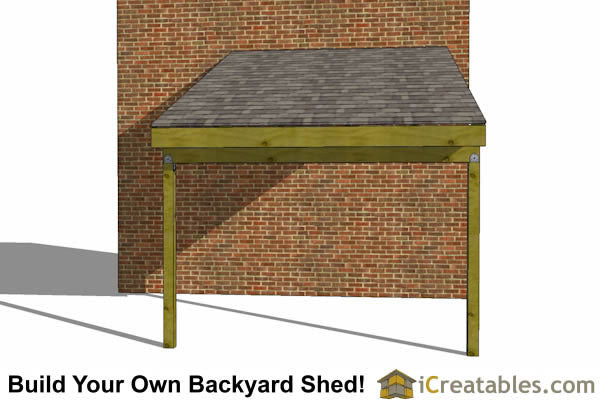

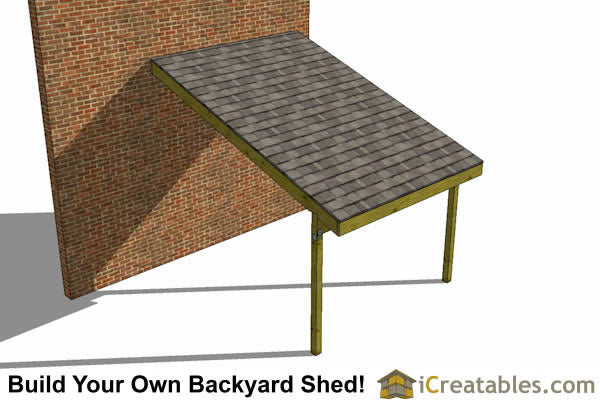

12x10 Lean To Open Sides Shed Plans Include The Following

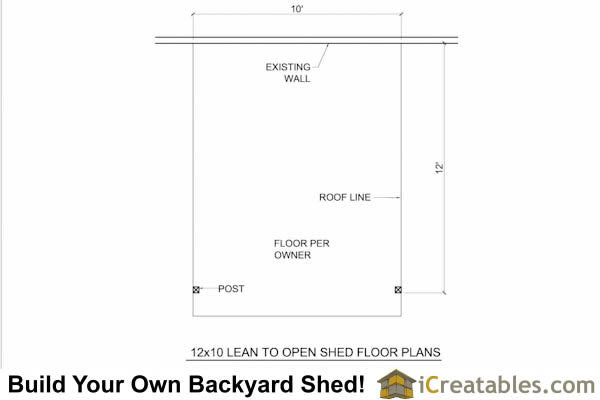

• Foundation: Concrete post bases.
• Beam Height: The height of this shed can vary by changing the post length. it is drawn for 7' to the bottom of the beam
• Roof = The roof is framed using 2x8's to build the rafters. It is sheeted with 1/2" O.S.B. The plans give you the dimensions and cut angles so you can build the roof rafters on the ground and then put them up on the top plates.
• Roof Pitch: 4/12, this means that for every 4 inches of rise there is 12 inches of run horizontally.
• Roof Overhang: 14" on the front and 1/2" on the sides.
• Roofing = 25 year asphalt shingles.
