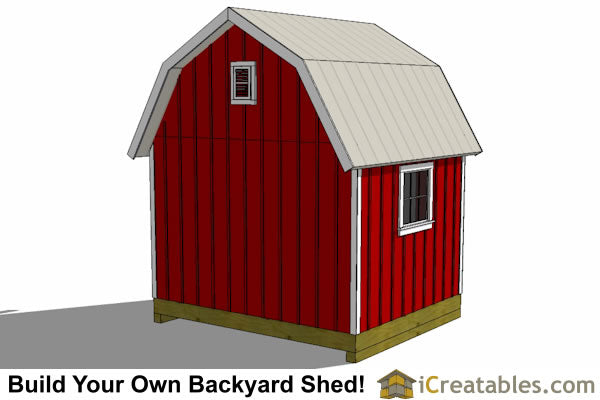

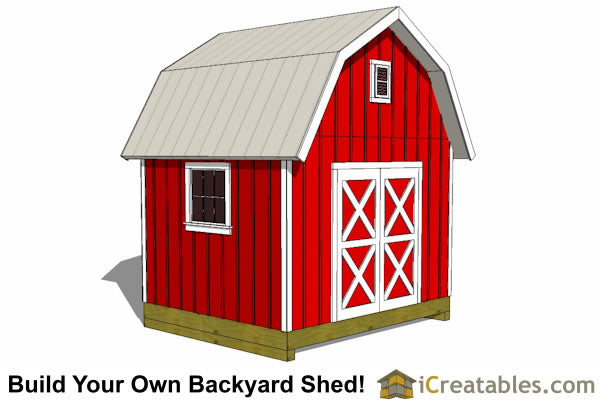

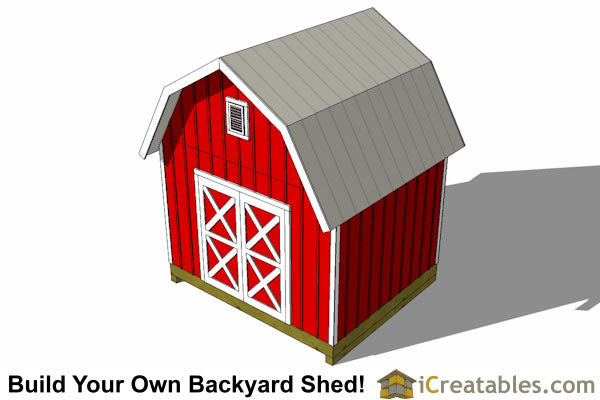

12x10-GB Gambrel Shed Plans Emailed

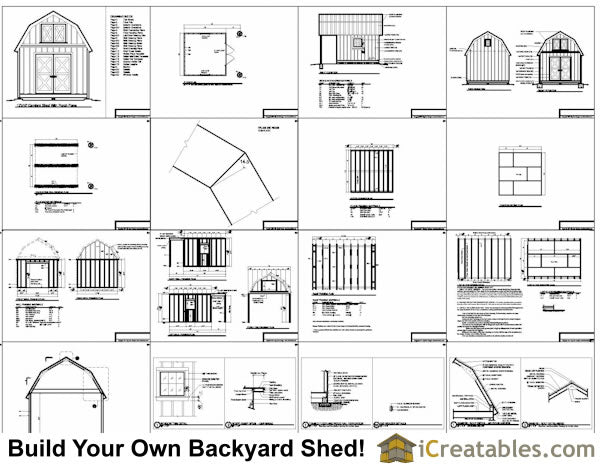

12x10 Gambrel Shed Plans Include The Following:

• Alternate Options: The 12x10 gambrel barn shed plans can be built with either factory built doors or you can build the doors using the door plans included with the shed plans.
• Materials List: Includes materials list broken down by the different parts of the shed.
• 1 Foundation: Plans include wood skid foundation plans. Contact us for other foundation options.
• Floor: 2x6 floor joists at 16" on center with 3/4" floor sheathing.
• Walls Framing: 2x4 framing at 16" on center with a double top plate, just like a home is framed.
• Wall Height: The shed wall height is 8'-1".

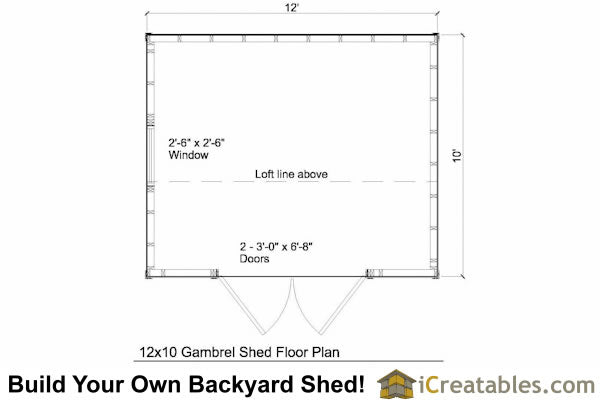

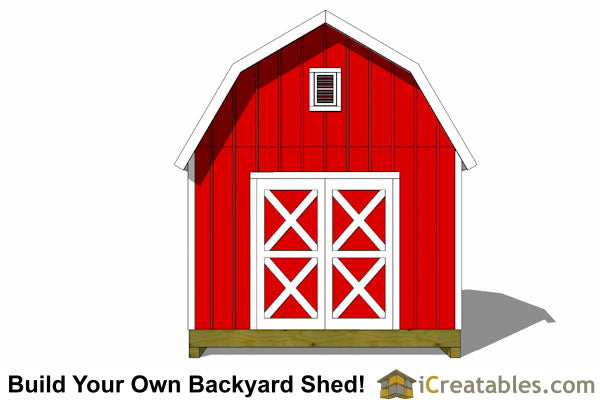

• Doors: Double doors creating a 6'-0" x 6'-8" opening. You can either build the doors using the included door plans or purchase factory built pre-hung doors.
• Windows: The plans call for 1 - 2626 window (2'-6" x 2'-6"). This is a standard window size that can be ordered from any window company. You may add other windows on the other walls if desired.
• Siding: Textured Plywood siding with 1-1/2" battens at 12" on center are shown on the plans. You may add or substitute other sidings such as cedar shingles or horizontal lap siding.
• Roof: The roof is framed using 2x4's to build the trusses. It is sheeted with 1/2" O.S.B. The plans give you the dimensions and cut angles so you can build the roof rafters on the ground and then put them up on the top plates.
• Roof Overhang: 12" on the front and back. 6" on the sides.
• Roofing: Metal Roofing or asphalt shingles
• Trim: 1x3 and 1x6 wood, Masonite or cement trim materials are used to finish the corners, roof eves, facia, and door.
• Floor Load: 50 pounds per square foot for framed floors.
