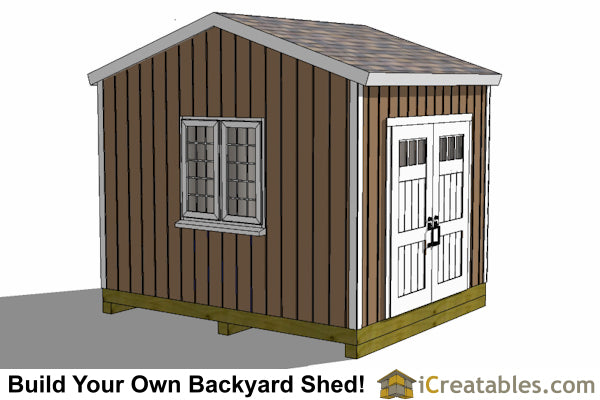

12x10-BT Backyard Tall Shed Plans Emailed

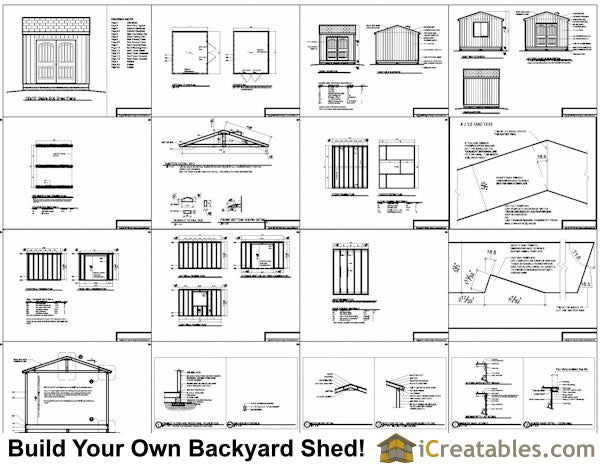

12x10 Backyard Shed Plans Include The Following:

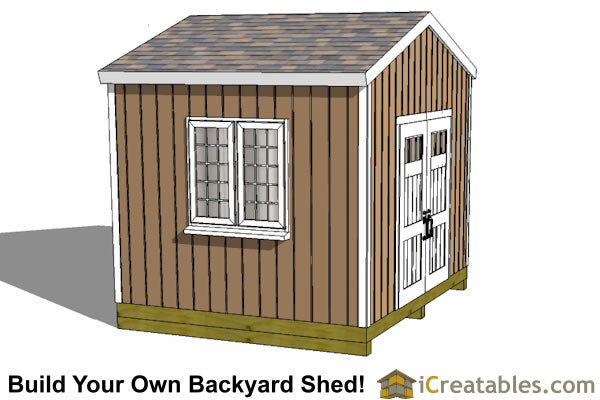

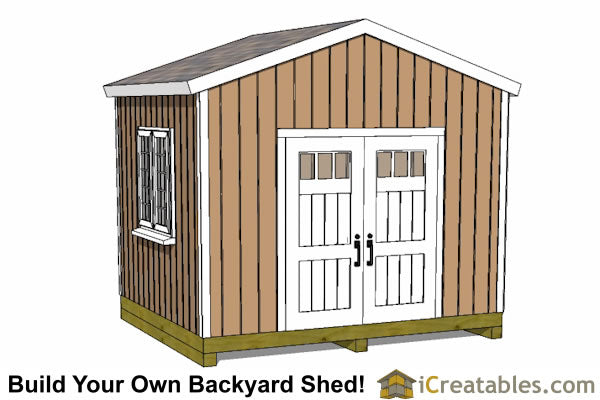

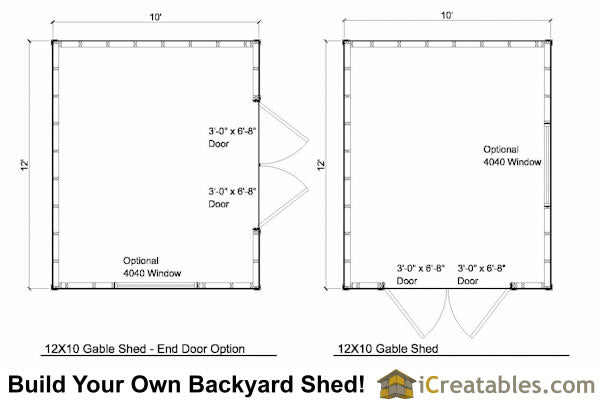

• Options: Plans include options to put the door on the end or side of the shed.
• Materials List: Use the included materials list to get pricing and to simplify the ordering of materials.
• 5 Foundations: There are 5 different foundations are included in the plans; 6x6 Wood skid, Concrete slab, Concrete Block Pier, Poured Concrete Pier and Precast pier.
• Floor: 2x8 floor joists with 3/4" floor sheathing.
• Walls Framing: 2x4 framing at 16" on center with a double top plate, just like a home is framed.
• Wall Height: The shed wall height is 7'-7". This wall height will accomodate the door that is outlined in the shed plans and a pre-built, pre-hung factory built door.
• Doors:Factory Built doors on pre hung jamb.
• Siding:T1-11 siding or similar 4'x8' wood or cement panel siding is specified but you can use any siding you like.
• Roof: The roof is framed using 2x4's to build the trusses. It is sheeted with 1/2" O.S.B. The plans give you the dimensions and cut angles so you can build the roof rafters on the ground and then put them up on the top plates.
• Roof Pitch: 4/12, this means that for every 4 inches of rise there is 12 inches of run horizontally.
• Roof Overhang: 4" on the sides and 1" on the front and back.
• Roofing: 25 year asphalt shingles
• Trim: 1x3 and 1x6 wood, Masonite or cement trim materials are used to finish the corners, roof eves and facia.
• Floor Load: 50 pounds per square foot for framed floors. This is the same floor load rating used in building homes.
• Roof Snow Load: 40 pounds per square foot. This is more than adequate for most areas. If you live in an area with a high snow load you should check with your local building department for your local snow load. Contact us and we can specify stronger roof framing.
