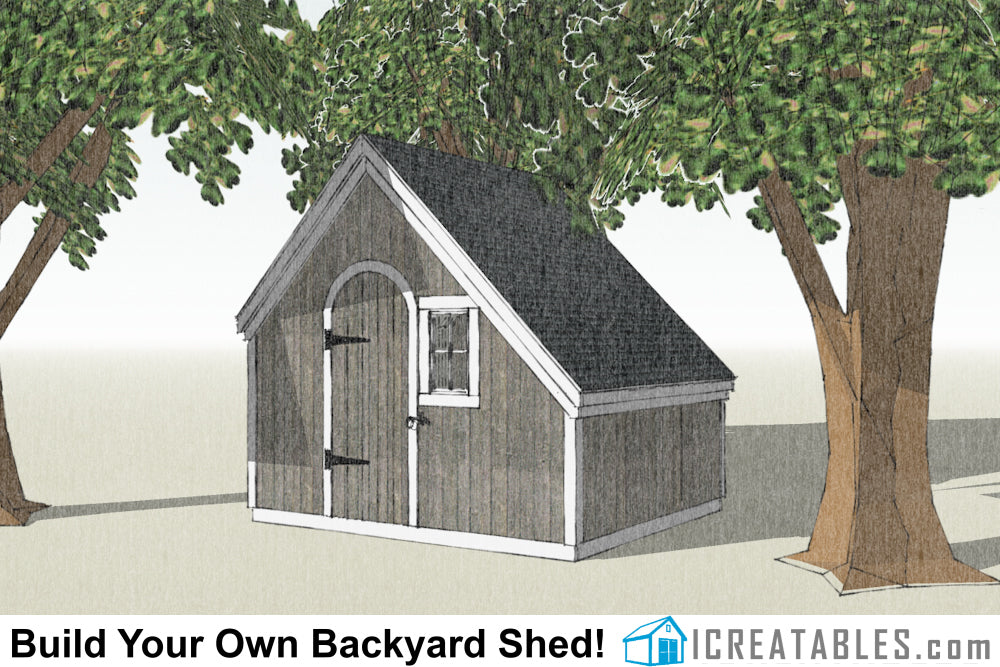

10x8-SS She Shed Plans Emailed

Shed Plans Include The Following:

Materials List:The shed plans come with a complete materials list that is broken down by parts of the shed. The list may be downloaded for free on this page.

Foundation: The plan scome with the design for the she to be built on a Wood skid foundation consisting of pressure treated lumber rails or on pressure treated floor joists set on a gravel bed.

Floor: 2x8 floor joists with 3/4" floor sheathing.

Walls Framing: 2x4 framing at 16" on center with a double top plate, just like a home is framed.

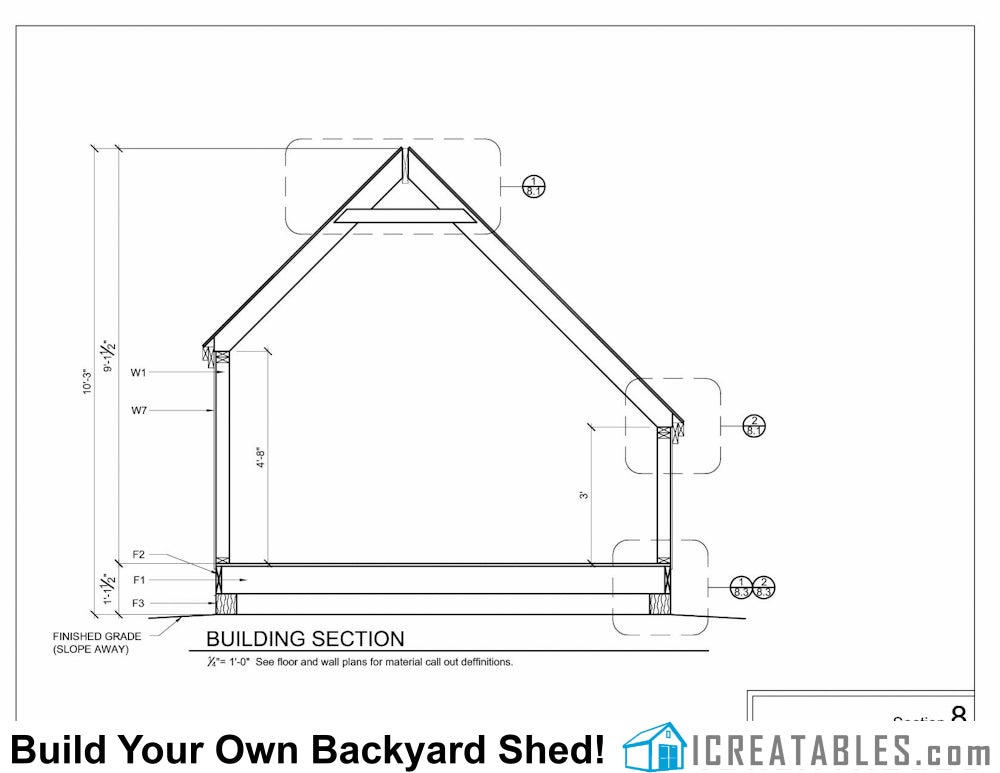

Wall Height: The shed wall height is 4'-8" and 3'-0". NOTE: To give this shed its "look" it does not have conventional wall heights, see the building section above.

Door: 2'-6" x 6'-0" Home built door from the included door plans.

Siding: T1-11 siding or similar 4'x8' wood or cement panel siding is specified but you can use any siding you like.

Roof: The roof is framed using 2x4's to build the trusses. It is sheeted with 1/2" O.S.B. The plans give you the dimensions and cut angles so you can build the roof rafters on the ground and then put them up on the top plates.

Roof Pitch: 12/12, this means that for every 12 inches of rise there is 12 inches of run horizontally.

Roof Overhang: 3" on the sides and front and back.

Roofing: 25 year asphalt shingles

Trim: 1x4 and 1x6 wood, Masonite or cement trim materials are used to finish the corners, roof eves and door.

Floor Load: 50 pounds per square foot for framed floors.

Roof Snow Load: 40 pounds per square foot total load. This is more than adequate for most areas. If you live in an area with a high snow load you should check with your local building department for your local snow load. Contact us and we can specify stronger roof framing.
