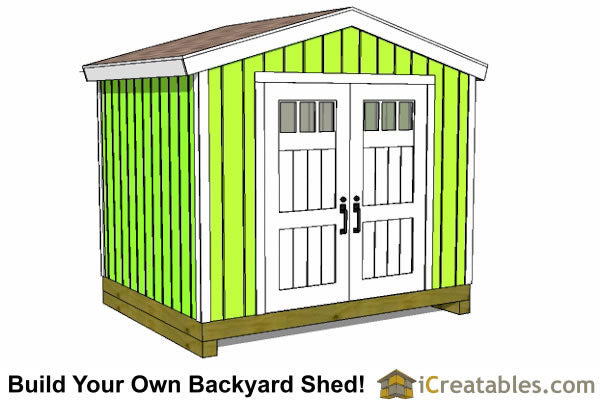

10x8-BT Backyard Tall Shed Plans Emailed

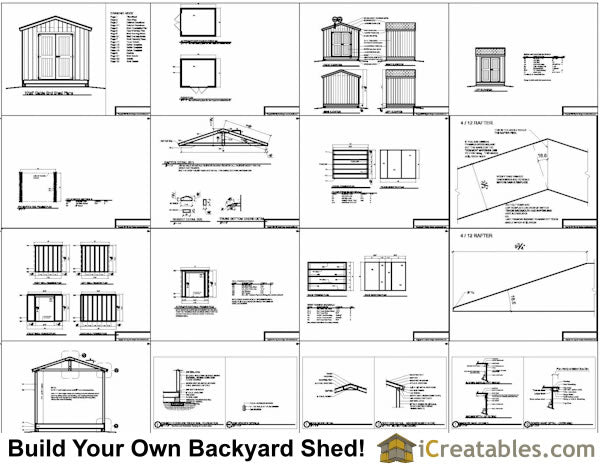

10x8 Backyard Shed Plans Include The Following:

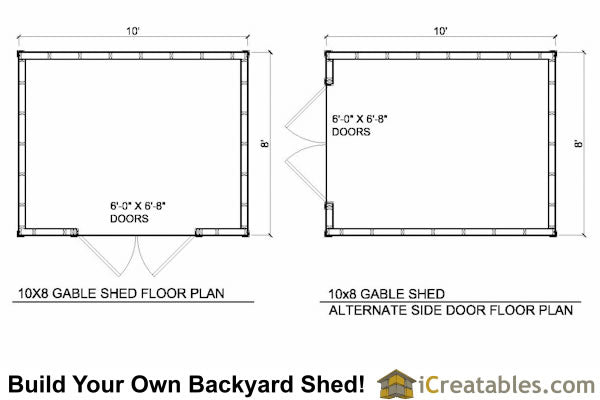

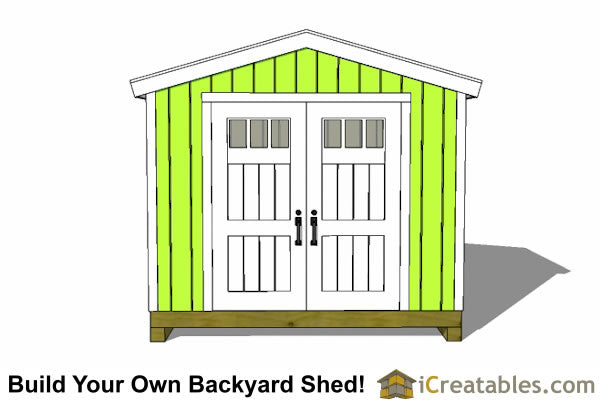

Alternate Options: The shed plans have alternate drawings for the door on the end or sides. The wall height can be built at 7'-6" (the minimum for a pre built door), or 8'-1" (the height of framing studs)

Materials List: The 10x8 garden shed plans come with a complete materials list that is broken down by parts of the shed.

Foundation: The plan scome with the design for the she to be built on a Wood skid foundation consisting of pressure treated lumber rails.

Floor: 2x8 floor joists with 3/4" floor sheathing.

Walls Framing: 2x4 framing at 16" on center with a double top plate, just like a home is framed.

Wall Height: The shed wall height is 7'-6" and an optional wall height of 8'-1"

Door: 6'-0" x 6'-8" Factory Built door on pre hung jamb or build the door from the included door plans.

Siding: T1-11 siding or similar 4'x8' wood or cement panel siding is specified but you can use any siding you like.

Roof: The roof is framed using 2x4's to build the trusses. It is sheeted with 1/2" O.S.B. The plans give you the dimensions and cut angles so you can build the roof rafters on the ground and then put them up on the top plates.

Roof Pitch: 4/12, this means that for every 4 inches of rise there is 12 inches of run horizontally.

Roof Overhang: 4" on the sides and 1" on the front and back.

Roofing: 25 year asphalt shingles

Trim: 1x4 and 1x6 wood, Masonite or cement trim materials are used to finish the corners, roof eves and facia, and door.

Floor Load: 50 pounds per square foot for framed floors. You don't want your shed floor to feel spongy.

Roof Snow Load: 40 pounds per square foot. This is more than adequate for most areas. If you live in an area with a high snow load you should check with your local building department for your local snow load. Contact us and we can specify stronger roof framing.
