10x8-6x8-G Garden Shed Plans Emailed

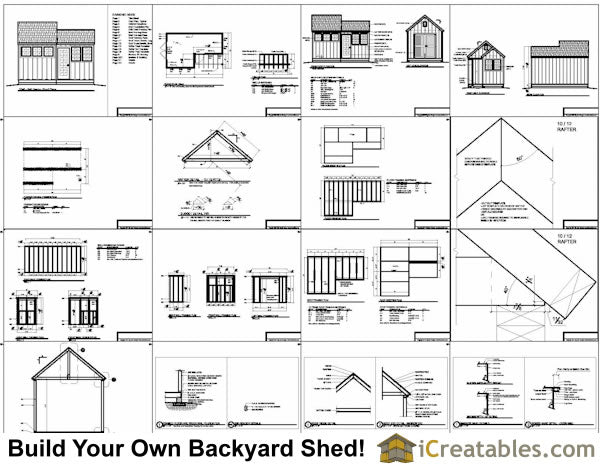

10x8-6x8 Garden Shed Plans Include The Following:

Alternate Options: There are seperate home built door plans so you can build your own door or use a pre built, pre-hung factory build door that is easy to install.

Materials List: Use the included materials list to get pricing and to simplify the ordering of materials.

Foundations: Wood skid, Concrete slab

Floor: 2x6 floor joists at 16" on center with 3/4" floor sheathing.

Walls Framing: 2x4 framing at 16" on center with a double top plate, just like a home is framed.

Wall Height: The shed wall height is 7'-7".

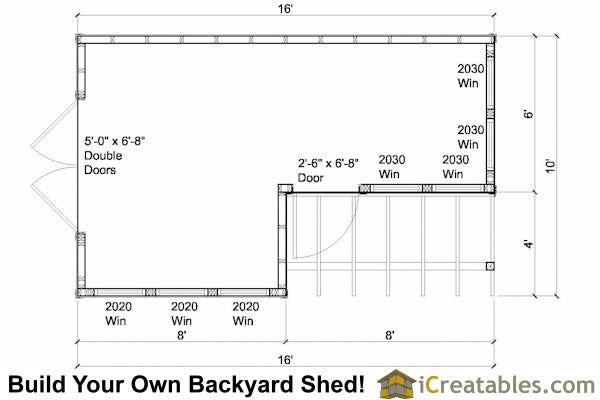

Doors: Our garden shed gives you the option of building your doors or purchasing factory built pre hung doors. The single door is a 2668 door and the double doors are a 5068 set of doors.

Windows: The plans call for 2020 awning windows (2'-0" x 2'-0") and 2030 windows. These are a standard window size that can be ordered from any window company.

Siding: Textured Plywood siding with 1-1/2" battens at 12" on center are shown on the plans. You may add or substitute other sidings such as cedar shingles or horizontal lap siding.

Roof: The roof is framed using 2x4's to build the trusses. It is sheeted with 1/2" O.S.B. The plans give you the dimensions and cut angles so you can build the roof rafters on the ground and then put them up on the top plates.

Roof Pitch: 10/12, this means that for every 10 inches of rise there is 12 inches of run horizontally.

Roof Overhang: 4" on the front and back. 1" on the gable ends.

Roofing = 25 year asphalt shingles. This may be substituted with other roofing materials.

Trim = 1x3 and 1x6 wood, Masonite or cement trim materials are used to finish the corners, roof eves, facia, and door.

Floor Load: 50 pounds per square foot for framed floors. You don't want your shed floor to feel spongy.

Roof Snow Load: 40 pounds per square foot. This is more than adequate for most areas. If you live in an area with a high snow load you should check with your local building department for your local snow load. Contact us and we can specify stronger roof framing.
