10x20-RIWF Run In Shed Plans Emailed

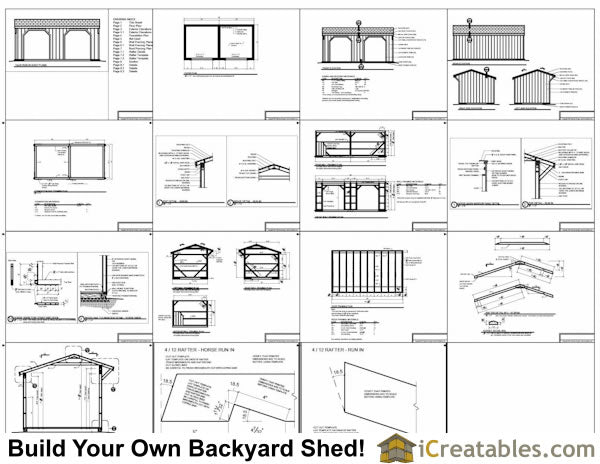

10x20 Run In Horse Shed Plans Include The Following

• Materials List: Use the included materials list to get pricing and to simplify the ordering of materials.

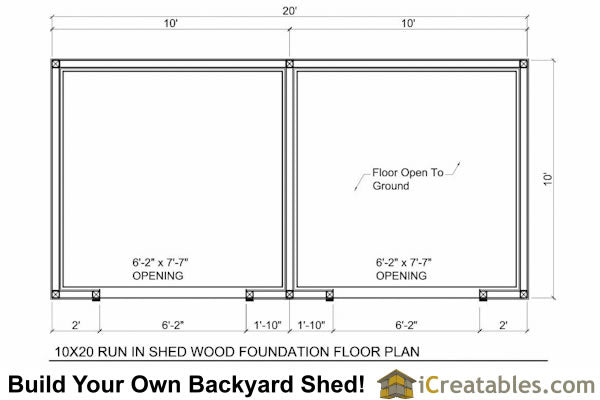

• Foundation: The horse run in shed is built on 6x6 wood skids so the shed has a open floor and can easily be placed on the ground or a prepared gravel base.
• Floor: The floor is exposed earth or gravel or rubber mats depending on the owners preference.

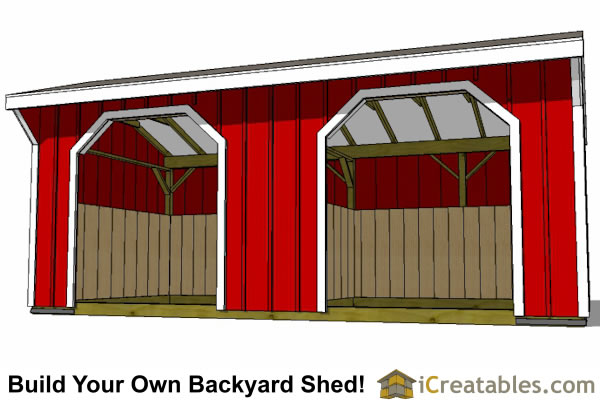

• Walls Framing: 4x4 posts with 2x4 girt boards between them.

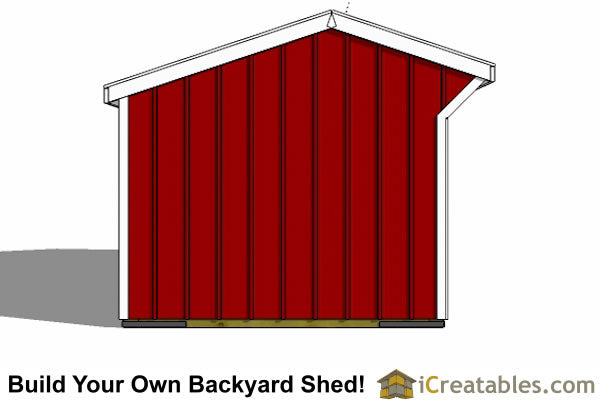

• Wall Height: The lower shed wall height is 7'-7" above the 6x6 rail which makes the rear wall about 8'-7" above the ground. the higher wall is just over 8'-6" above the ground.

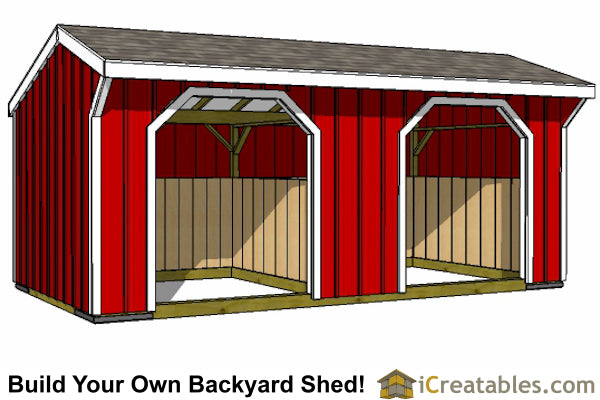

• Doors: The run in bays are open.
• Window: There are no windows on the plans but windows can be added on any wall.

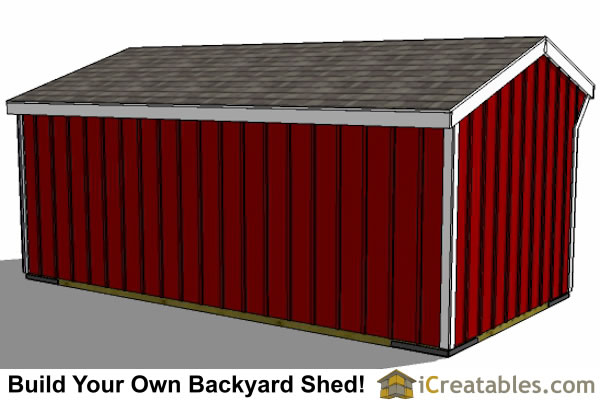

• Siding: 4x8 textured plywood and 1x2 battens. (Other siding materials may be substitued

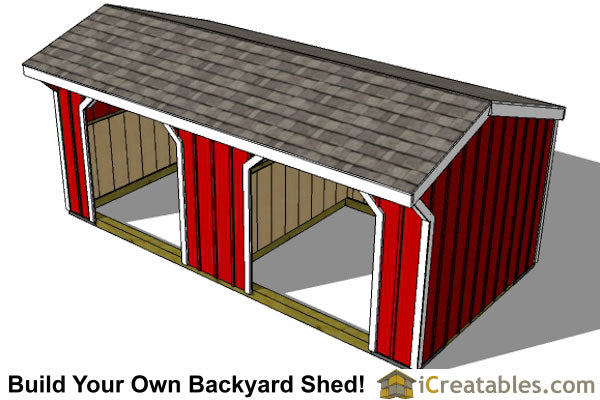

• Roof: The roof is framed using 2x4's to build the rafters. It is sheeted with 1/2" O.S.B. for strength and can have asphalt shingles or metal roofing installed. The plans give you a template and dimensions for the birdsmouth cut angles on the rafters.
• Roof Pitch: 4/12, this means that for every 4 inches of rise there is 12 inches of run horizontally.
• Roof Overhang: 18" on the front and 6" on the back. 2" on the sides.
• Roofing = Asphalt shingles or Corrugated metal roofing.
• Trim = 1x4 and 1x6 wood are used to finish the corners, roof eves and facia.
• Tow Hooks = The plans include drawings for the 1/4" x 2" x 24" corner braces and tow hooks.
