10x20-B Backyard Shed Plans Emailed

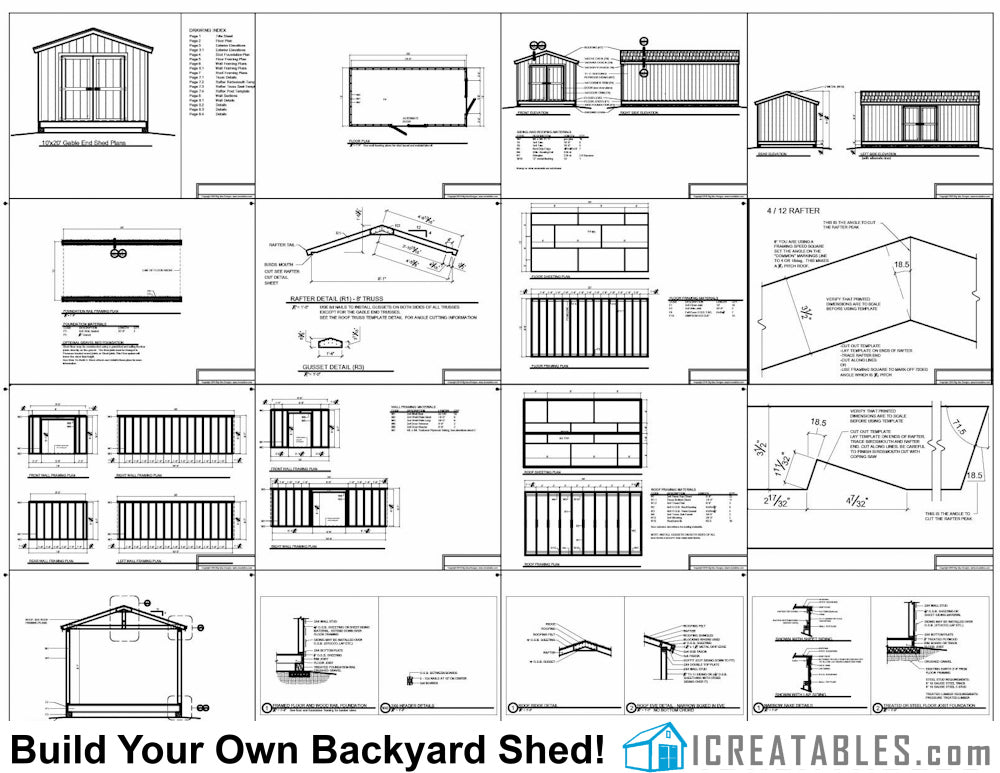

10x20 Backyard Shed Plans Specifications Overview

These are the basic materials used to build the 10x12 shed. Materials such as vinyl siding or a pre-hung door can be substituted to change the look or functionality of the shed but will increase the cost.

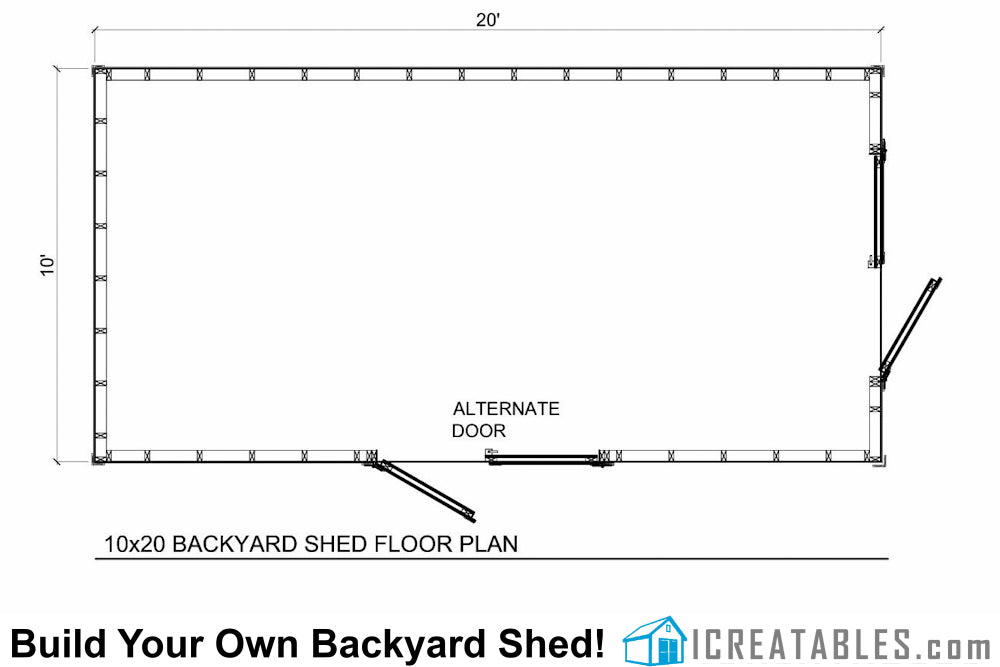

Options: Plans include options to put the door on the end or side of the shed.

Materials List: Use the included materials list to get pricing and to simplify the ordering of materials.

Foundation: 4 different foundations are included in the plans; Wood skid, Concrete slab, Concrete Pier and Precast pier.

Floor: 2x8 floor joists at 16" on center with 3/4" floor sheathing.

Walls: 2x4 framing at 16" on center with a double top plate, just like a home is framed. The shed wall height is 6'-7" but can be made taller by simply using a different wall stud length.

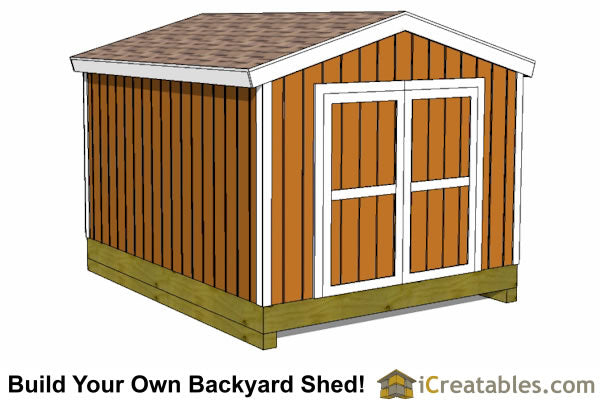

Door: Two door options included Double 5'-9" x 5'-9 1/2" doors or a single 3'-10 1/2" x 5'-9 1/2"

Roof: The roof is framed using 2x4's to build rafter trusses. It is sheeted with 1/2" O.S.B. (or 5/8 if you want to make it extra strong.)

Roofing: 25 year asphalt shingles.

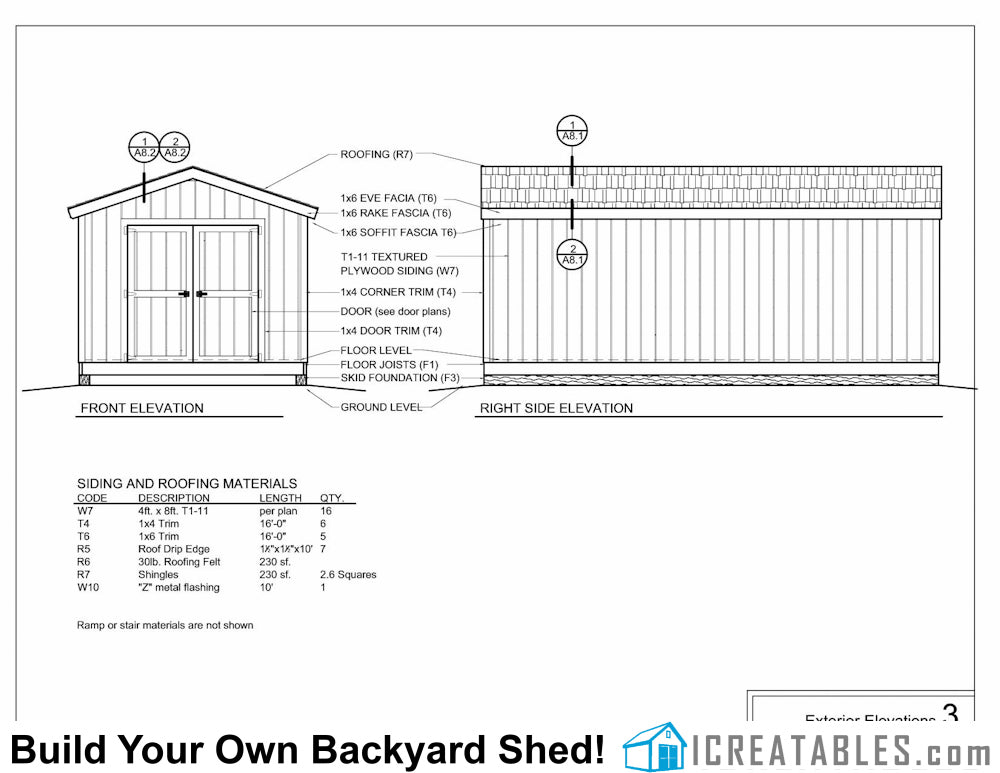

Siding: T1-11 siding or similar 4'x8' wood or cement panel siding is specified. This can be changed to use any siding you like.

Trim: 1x3 and 1x6 wood, Masonite or cement trim materials are used to finish the corners, roof eves and fascia, and door.
