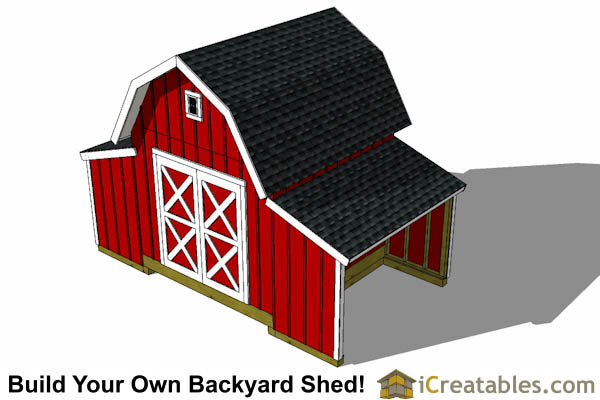

10x18-GBLT Gambrel Lean To Shed Plans Emailed

10x18 Gambrel Shed Plans Include The Following:

Alternate Options: This shed can be built with or without the lean to sheds on the side.

Materials List: Use the included materials list to get pricing and to simplify the ordering of materials.

5 Foundations: There are 5 different foundations are included in the plans; Wood skid, Concrete slab, Concrete Block Pier, Poured Concrete Pier and Precast pier.

Floor: 2x8 floor joists at 16" on center with 3/4" floor sheathing. The lean to sheds use the ground as their floor.

Walls Framing: 2x4 framing at 16" on center with a double top plate, just like a home is framed.

Wall Height: The 10x10 shed wall height is 7'-7". The opening height for the side lean to sheds is 6'.

Doors: The 10x18 barn shed has a double door that makes a 6'-0" x 6'-8" opening. You can either build the doors using the included door plans or purchase factory built pre-hung doors.

Siding: Textured Plywood siding with 1-1/2" battens at 12" on center are shown on the plans. You may add or substitute other sidings such as cedar shingles or horizontal lap siding.

Roof: The roof is framed using 2x4's to build the trusses. It is sheeted with 1/2" O.S.B. The plans give you the dimensions and cut angles so you can build the roof rafters on the ground and then put them up on the top plates.

Roof Pitch: 10/12, on the raised center roof and 4/12 for the side roofs.

Roof Overhang: 4" on the front and back. 1" on the sides.

Roofing = 25 year asphalt shingles.

Trim = 1x3 and 1x6 wood, Masonite or cement trim materials are used to finish the corners, roof eves, facia, and door.

Floor Load: 50 pounds per square foot for framed floors.
