10x14-S1 Modern Shed Plans Emailed

10x14 Modern Shed Plans Specifications Overview

These are the basic materials used to build the 10x14 shed. Materials such as vinyl siding or a pre-hung door can be substituted to change the look or functionality of the shed but will increase the cost.

Materials List: Use the included materials list to get pricing and to simplify the ordering of materials.

Foundation = 4 different foundations are included in the plans; Wood skid, Concrete slab, Concrete Pier, Precast pier.

Floor = 2x8 floor joists with 3/4" floor sheathing.

Walls: 2x4 framing at 16" on center with a double top plate and the lower shedwall height is 7'-6" the taller wall is 9'-2 1/2". The walls are sheeted with 7/16" O.S.B. which will hold any siding you wish to put on your modern shed.

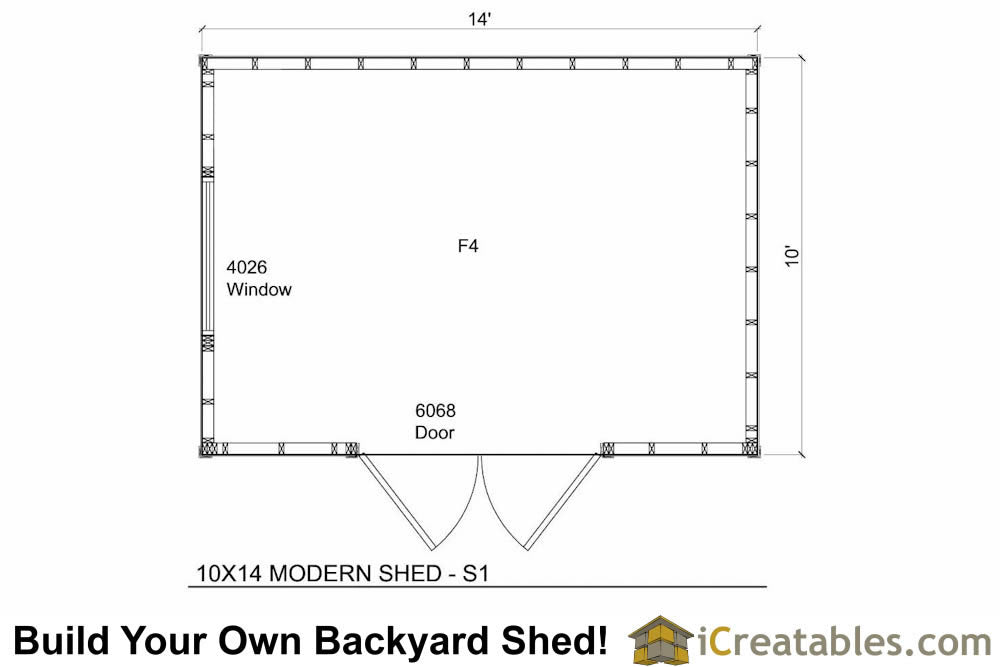

Door = The specified door is a 6068 full glass residential home pre-hung door. Other doors may be used.

Roof = The roof is framed using 2x8's at 24" on center. It is sheeted with 1/2" O.S.B.

Roofing = Corrugated metal.

Siding = T1-11 Plywood siding installed horizontally provides a cost effective way to have a contemporary look.

Detailed description of what is included in the 10x14 modern storage shed plans.

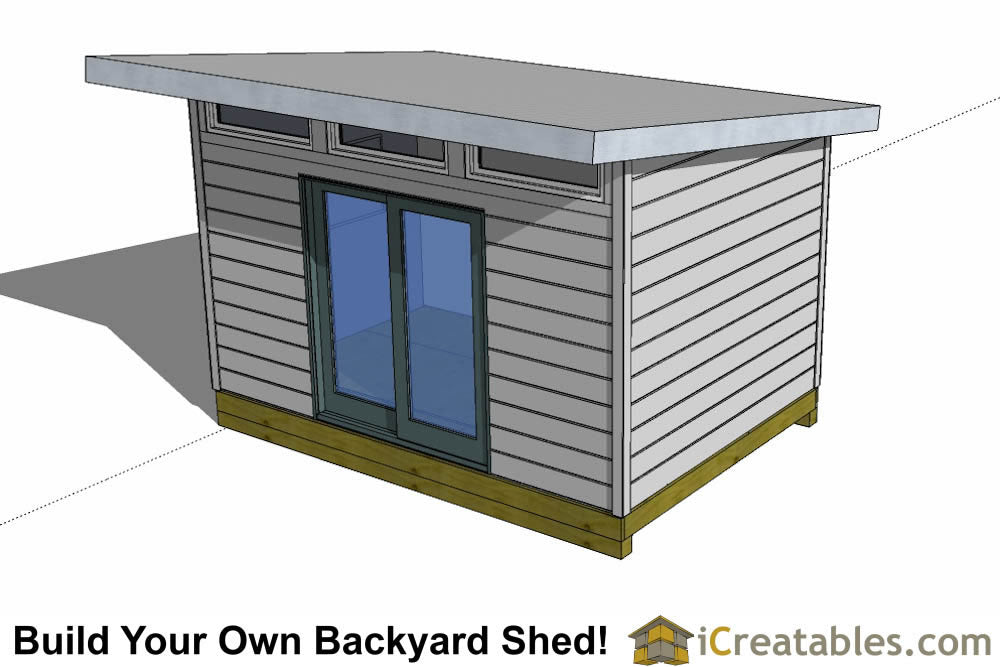

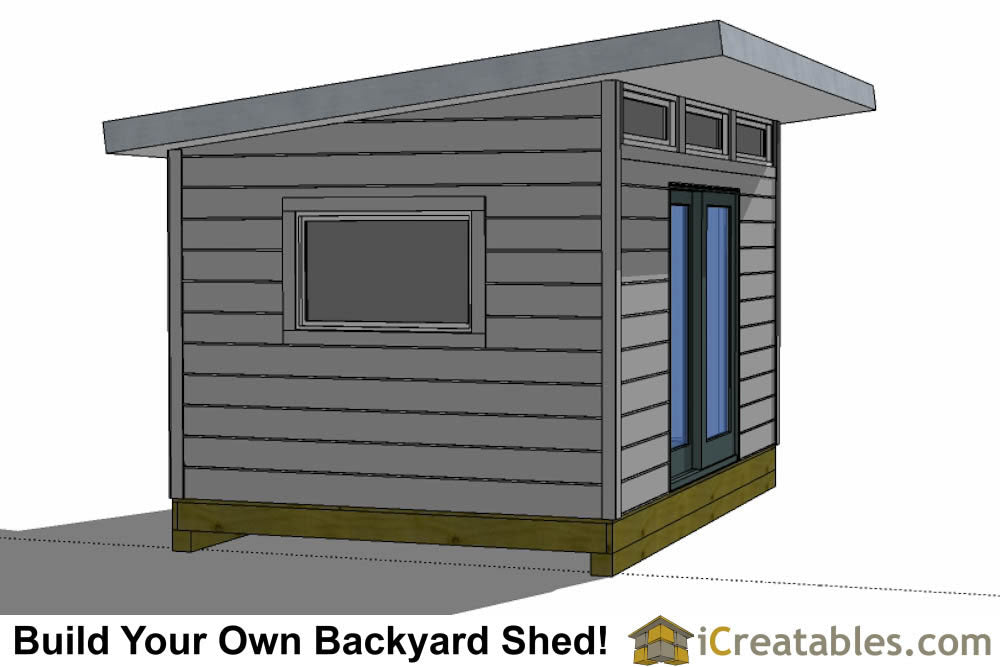

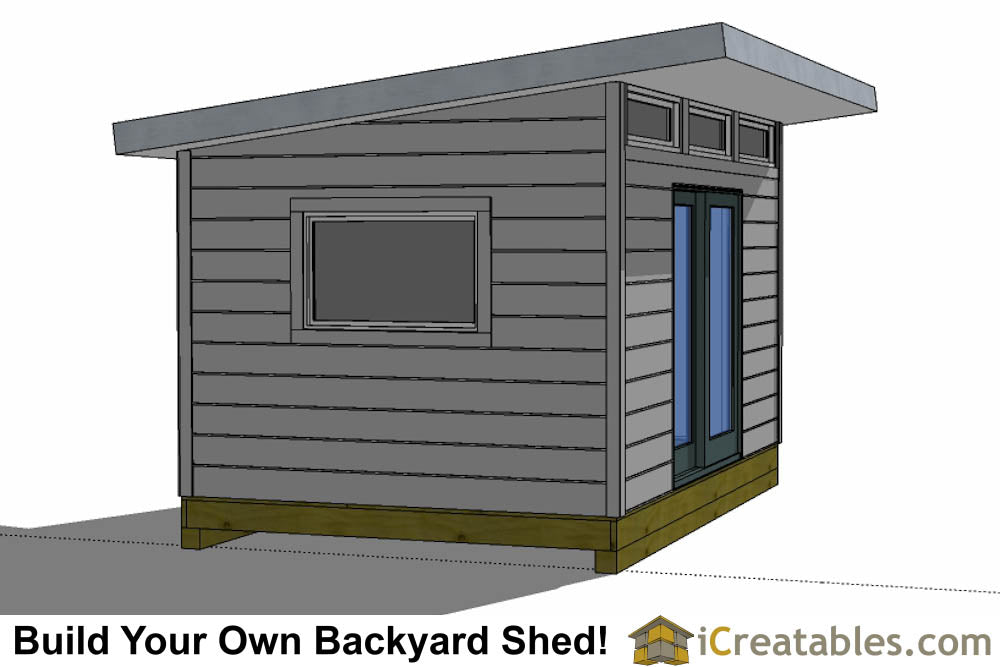

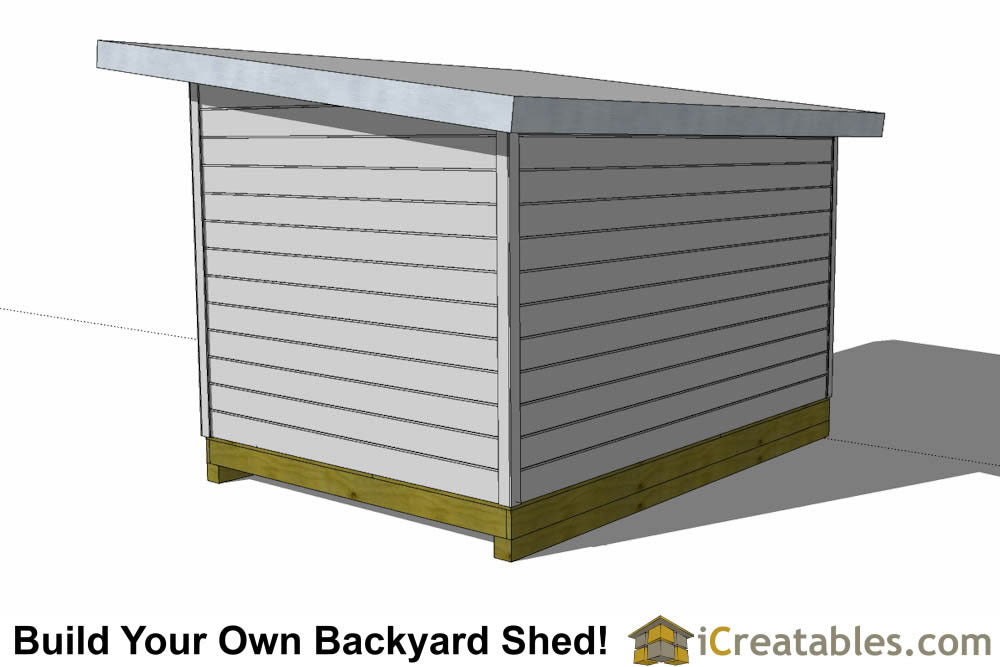

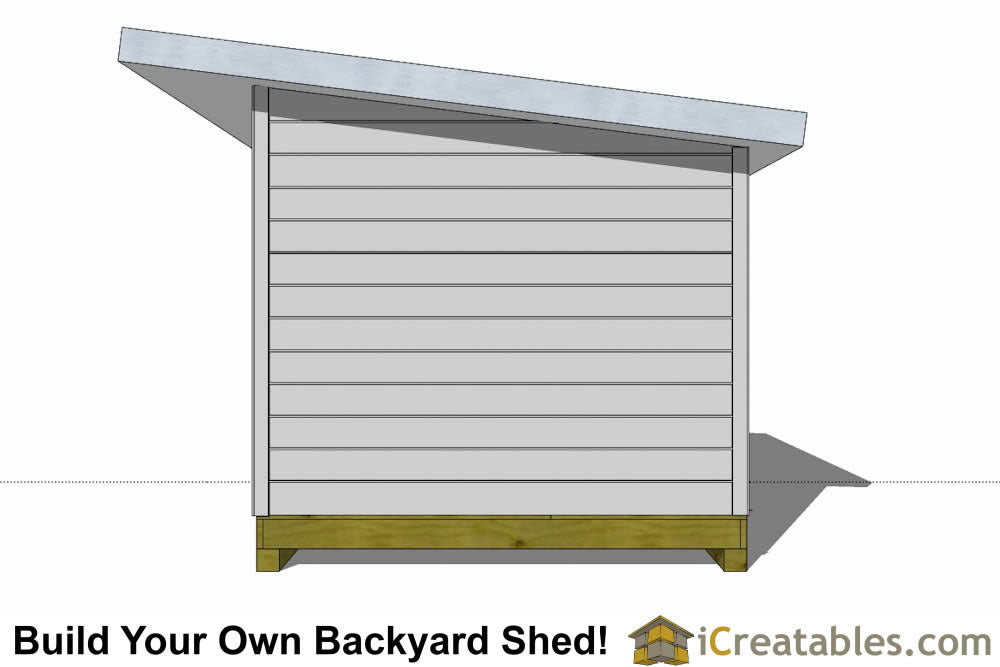

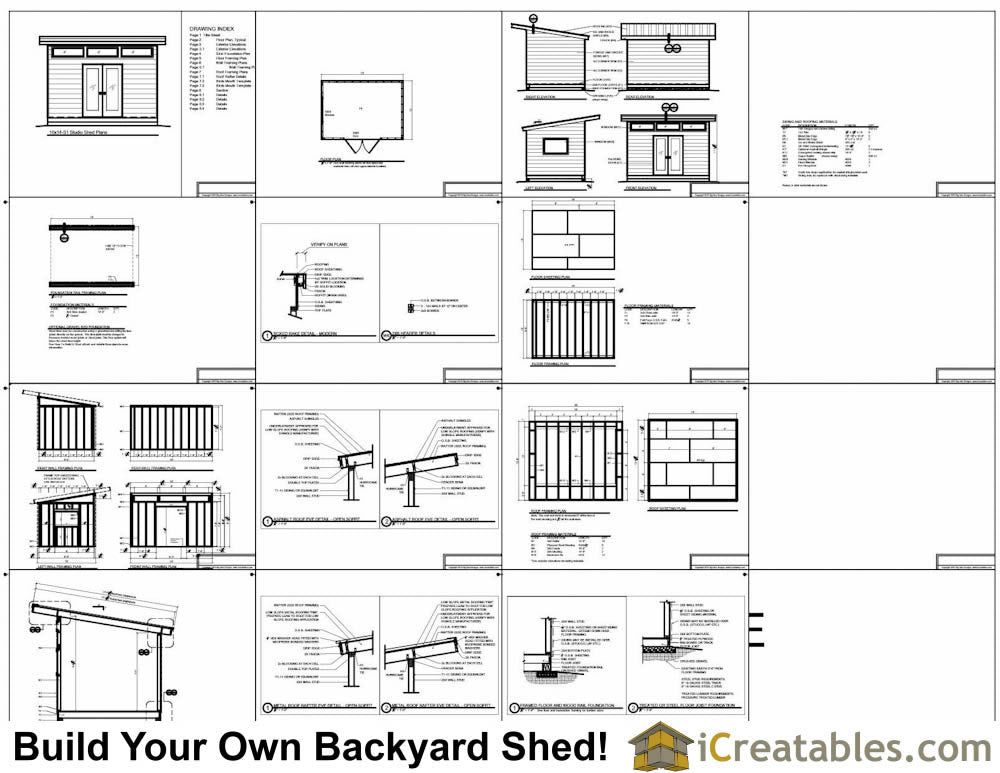

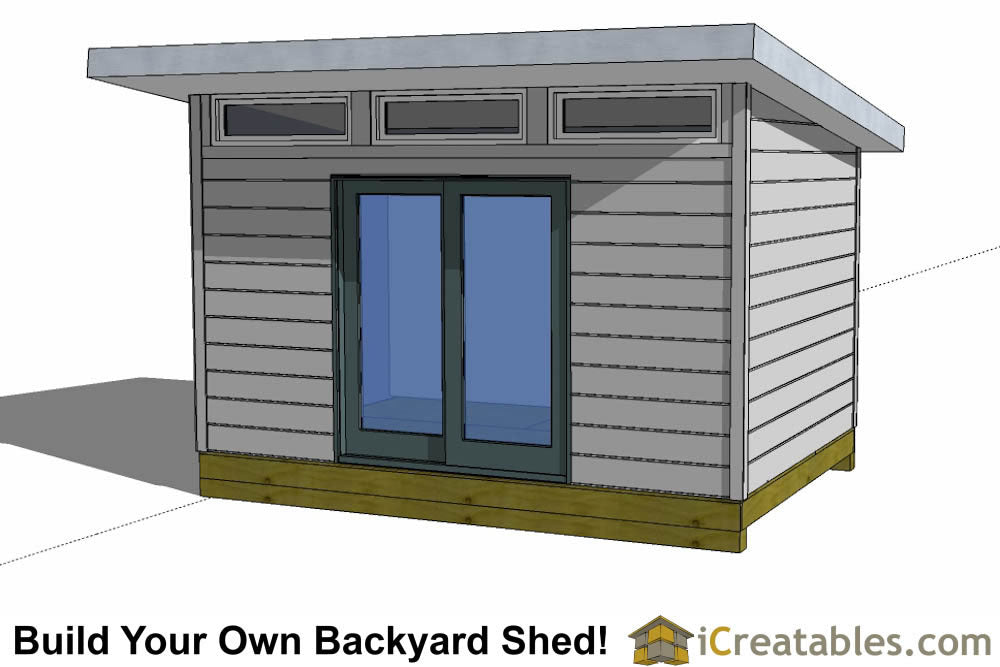

An 10x14 shed designed to be used as a office or workspace. The difference between modern and other storage sheds is mostly the design of the roof and the addition of windows to add light. The usable storage space inside is the same it is simply the look that is different. The flat roof is a little simpler to build and there are additional windows. The modern shed also is designed to use a regular residential home door. The modern shed can be built without windows. Our storage shed plans use a 8 1/2 x 11" page format so you can easily print them out on your home printer. All pages of the plans have dimensions on every part.
