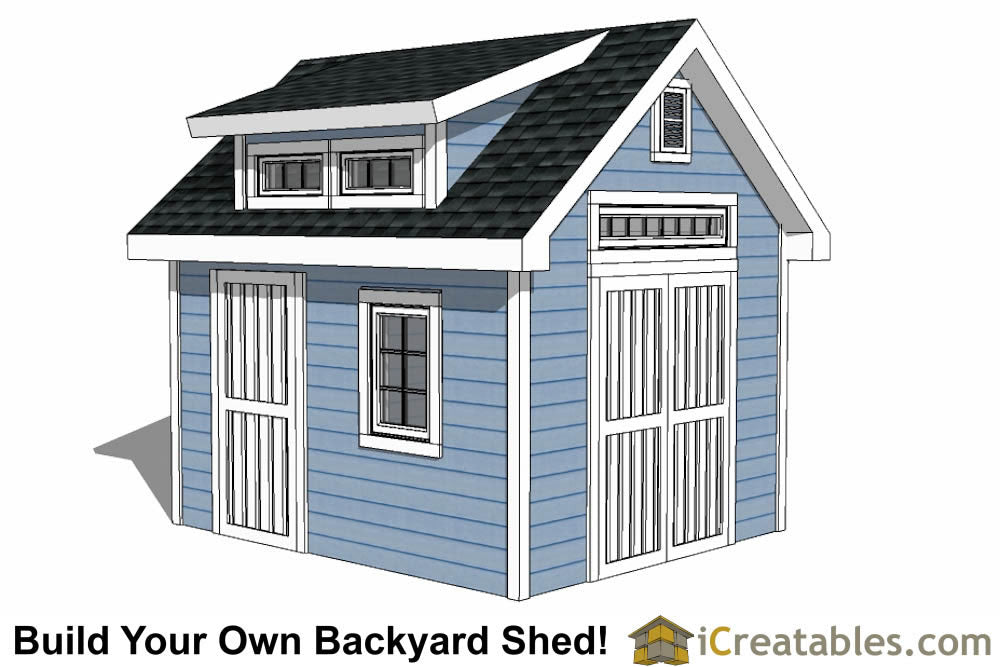

10x12-D Dormer Shed Plans Emailed

10x12 Dormer Shed Plans that you can use to build your backyard garden shed.

This shed design includes the following:

• Foundations: Wood rail. Concrete slab. Concrete pier and beam.
• Floor: 2x8 floor Joists at 16" o.c. with 3/4" floor sheathing.
• Roof Pitch: 10/10 Main roof. 4/12 Dormer Roof
• Wall Framing: 92 5/8" wall studs with double top plate for 8'-1" wall height. 2x4at 16" o.c.
• Siding: T1-11 or equivalent.
• Trim: 1x4 and 1x6 trim materials may be used.
• Roof Overhang: 10"
• Floor Load: 50lbs psf.
• Roof Snow Load: 40 lbs psf. (30 lb live. 10lb dead)
• Shed Height: 13'-7" When built on wood floor with rail foundation.
• Other Features: Loft with opening behind the upper windows
