10x12-LT Lean To Shed Emailed Plans

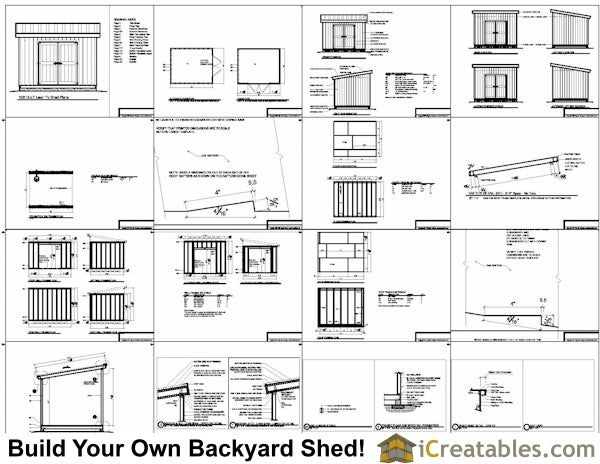

10x12 Lean To Storage Shed Plans Include The Following

Alternate Options: The 10x12 lean to shed plans can be built with either factory built doors or you can build the doors using the door plans included with the shed plans.

Materials List: Use the included materials list to get pricing and to simplify the ordering of materials.

Foundations: There are 5 different foundations are included in the plans; Wood skid, Concrete slab, Concrete Block Pier, Poured Concrete Pier and Precast pier.

Floor: 2x6 floor joists at 16" on center with 3/4" floor sheathing.

Walls Framing: 2x4 framing at 16" on center with a double top plate, just like a home is framed.

Wall Height: The lower shed wall height is 7'-7", the higher wall is just over 9'-6".

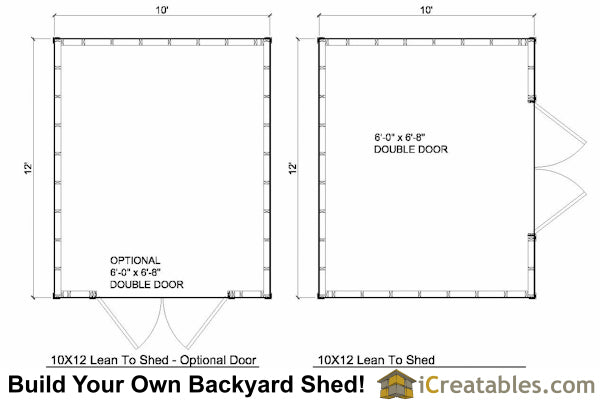

Doors: The doors are a pair of 3068 pre-hung, factory made doors for ease of installation. A single door may be installed if desired. The shed plans include plans detailing how to build home built doors that fit in the 6068 door opening.

Window: There are no windows on the plans but windows can be added on any wall.

Siding: Textured Plywood siding is what is shown on the plans. You may add or substitute other sidings such as cedar shingles or horizontal lap siding or vinyl siding.

Roof: The roof is framed using 2x6's to build the rafters. It is sheeted with 1/2" O.S.B. The plans give you a template and dimensions for the birds mouth cut angles.

Roof Pitch: 2/12, this means that for every 2 inches of rise there is 12 inches of run horizontally.

Roof Overhang: 6" on the front and back. 1" on the sides.

Roofing = PBR Corrugated metal roofing shape designed for low slope roofs.

Trim = 1x4 and 1x6 wood, masonite or cement trim materials are used to finish the corners, roof eves, facia, and door.

Floor Load: 50 pounds per square foot for framed floors.

Roof Snow Load: 40 pounds per square foot. This is more than adequate for most areas. If you live in an area with a high snow load you should check with your local building department for your local snow load. Contact us and we can specify stronger roof framing.
