10x12-GD Garage Door Shed Plans Emailed

10x12 Shed Garage Plans Specifications Overview

Options: The framed shed floor can be constructed using O.S.B. sheeting or 2x6 boards.

Foundation: There are 3 different foundations included in the plans; 6x6 Wood skid or Concrete slab. or Treated Wood or steel framing set directly on a gravel bed.

Floor: There are 3 floor types included. 2x6 floor joists at 16" on center with 3/4" floor sheathing or 2x6 floor joists at 16" on center with 2x6 Treated lumber or Concrete slab.

Walls: 2x4 framing at 16" on center with a double top plate and O.S.B. sheeting, just like a home is framed.

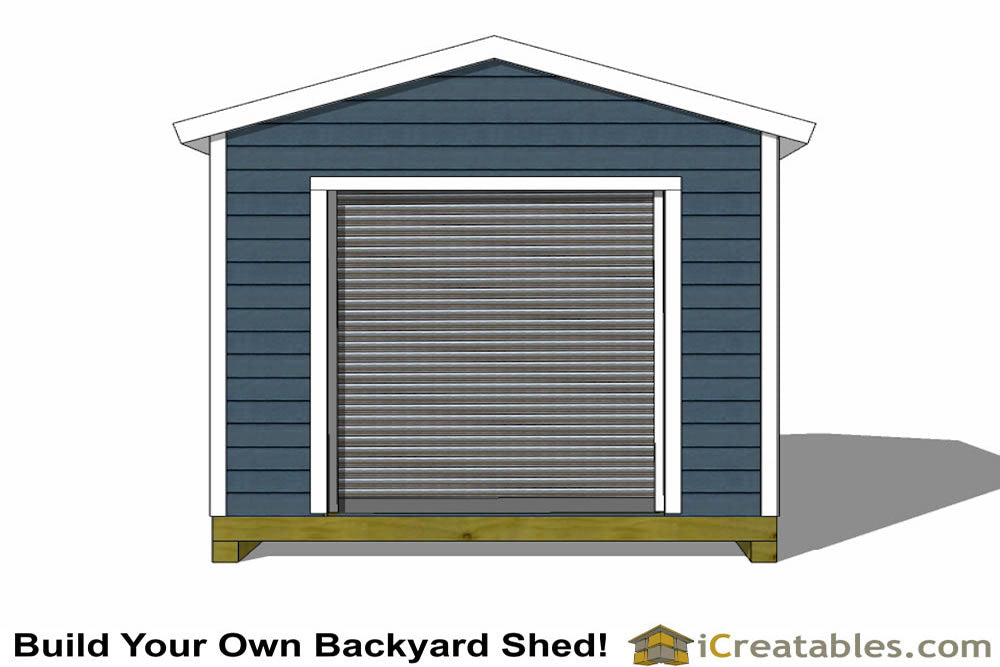

Door: The shed is designed to use a 6' wide by 7' tall overhead roll up door. An overhead multi panel door can also be used.

Roof: The roof is framed using 2x4's to build rafter trusses.

Roofing: The shed roofing is 25 year asphalt shingles.

Siding: T1-11 sheet siding is specified.

Trim: 1x6 wood, masonite or cement trim materials are used to finish the roof eves and facia. Corner, door and window trims vary depending on siding type used.
