10x12-BB Backyard Barn Shed Plans Emailed

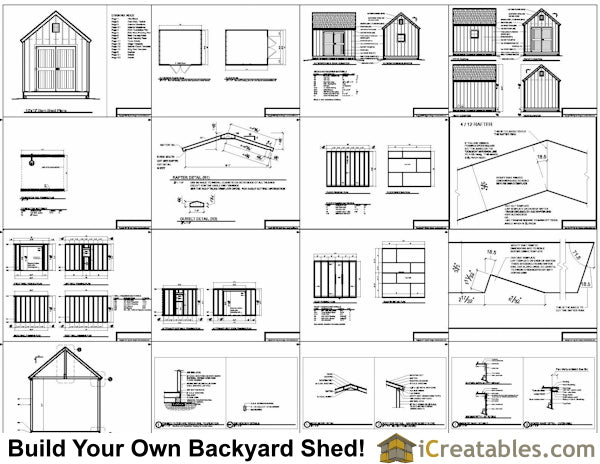

10x12 Barn Shed Plans Include The Following:

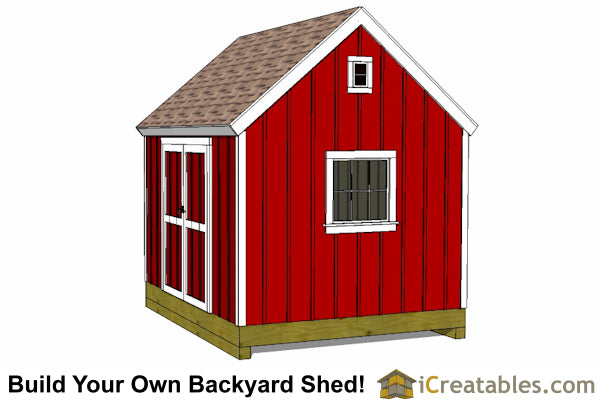

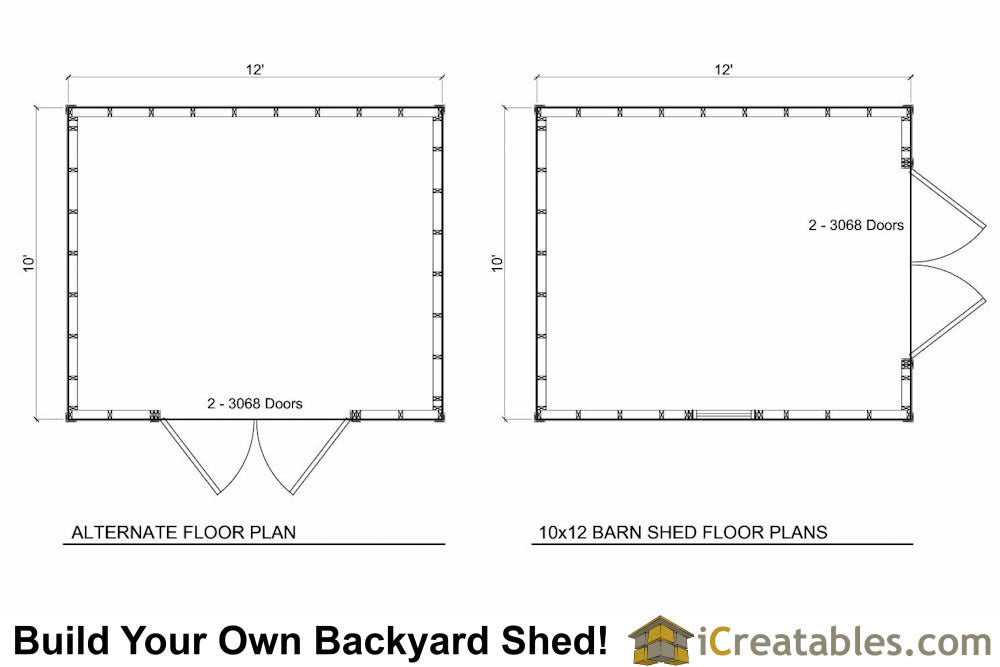

Door Installation Options: The plans include framing plans for the doors on the side or gable ends.

Materials List: Use the included materials list to get pricing and to simplify the ordering of materials.

5 Foundations = 4 different foundations are included in the plans; Wood skid, Concrete slab, Concrete Pier, Concrete Block and Precast pier.

Floor = 2x8 floor joists at 16" on center with 3/4" floor sheathing.

Walls = 2x4 framing at 16" on center with a double top plate, just like a home is framed. The shed wall height is 7'-7".

Door = Purchase and install factory built pre-hung doors or build the doors using the included shed door plans.

Roof = The roof is framed using 2x4's to build rafter trusses. It is sheeted with 1/2" O.S.B.

Roofing = 25 year asphalt shingles.

Siding = The siding is exterior grade rough sawn plywood faced with 1 1/2" x 1/2" battens. This can be changed to use any siding you like.

Trim = 1x3 and 1x6 wood, masonite or cement trim materials are used to finish the corners, roof eves and facia, and door.
