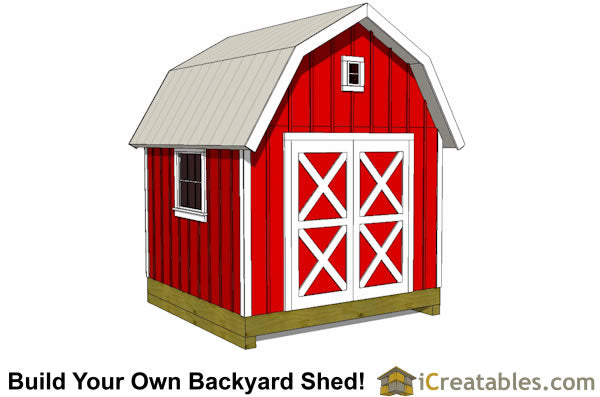

10x10-GB-Gambrel Shed Plans Emailed

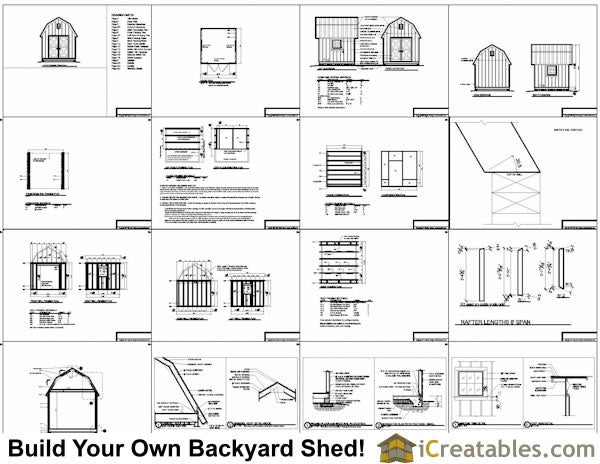

10x10 Gambrel Shed Plans Include The Following:

Alternalte Options: The shed plans can be built with either factory built doors or you can build the doors using the door plans included with the shed plans.

Materials List: Use the included materials list to get pricing and to simplify the ordering of materials.

5 Foundations: There are 5 different foundations are included in the plans; Wood skid, Concrete slab, Concrete Block Pier, Poured Concrete Pier and Precast pier.

Floor: 2x8 floor joists at 16" on center with 3/4" floor sheathing.

Walls Framing: 2x4 framing at 16" on center with a double top plate, just like a home is framed.

Wall Height: The shed wall height is 7'-7".

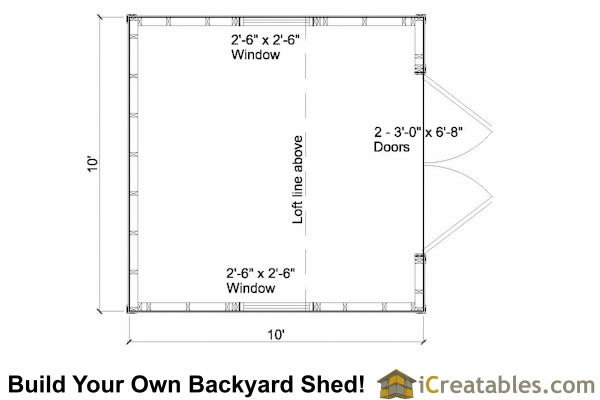

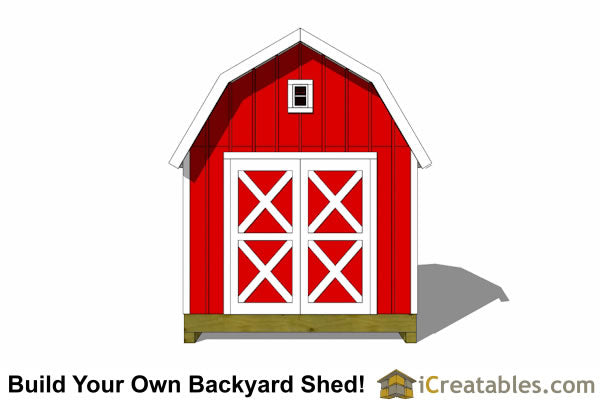

Doors: The double doors make a 6'-0" x 6'-8" opening. You can either build the doors using the included door plans or purchase factory built pre-hung doors.

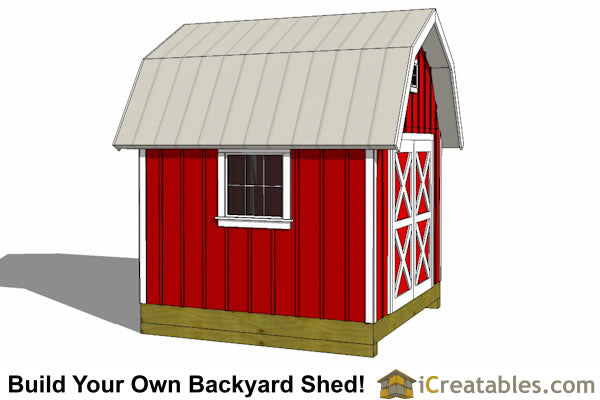

Windows: The plans call for 2 - 2626 windows (2'-6" x 2'-6"). This is a standard window size that can be ordered from any window company. You may add other windows on the other walls if desired.

Siding: Textured Plywood siding with 1-1/2" battens at 12" on center are shown on the plans. You may add or substitute other sidings such as cedar shingles or horizontal lap siding.

Roof: The roof is framed using 2x4's to build the trusses. It is sheeted with 1/2" O.S.B. The plans give you the dimensions and cut angles so you can build the roof rafters on the ground and then put them up on the top plates.

Roof Pitch: 10/12, this means that for every 10 inches of rise there is 12 inches of run horizontally.

Roof Overhang: 4" on the front and back. 1" on the sides.

Roofing = 25 year asphalt shingles.

Trim = 1x3 and 1x6 wood, masonite or cement trim materials are used to finish the corners, roof eves, facia, and door.

Floor Load: 50 pounds per square foot for framed floors.
