10x10-CC Cape Cod Shed Plans Emailed

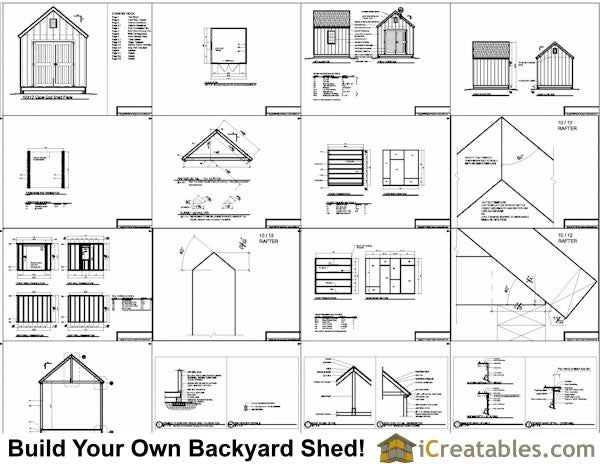

10x10 Cape Cod Shed Plans Include The Following

Materials List: Use the included materials list to get pricing and to simplify the ordering of materials.

Foundation = 4 different foundations are included in the plans; Wood skid, Concrete slab, Concrete Pier and Precast pier.

Floor = 2x8 floor joists at 16" on center with 3/4" floor sheathing.

Walls = 2x4 framing at 16" on center with a double top plate, just like a home is framed. The shed wall height is 7'-7" but can be made taller by simply using a different wall stud length.

Door = The 10x10 shed has 2 doors, the double doors make a 5'-6 1/2" x 5'-9 1/2" opening. They are built using sandwich construction for strength and durability..

Window = The plans call for a 1626 awning window (2'-0" x 3'-6"). This is a standard window size that can be ordered from any window company.

Roof = The roof is framed using 2x4's to build rafter trusses. It is sheeted with 1/2" O.S.B. (or 5/8 if you want to make it extra strong.)

Roofing = 25 year asphalt shingles.

Siding = The siding is exterior grade plywood faced with 2x1/2" battens. This can be changed to use any siding you like such as shingles.

Trim = 1x4 and 1x6 wood, masonite or cement trim materials are used to finish the corners, roof eves and facia, and door.
