10x10-B Backyard Shed Plans Emailed
10x10-B Backyard Shed Plans Emailed
Regular price
$24.99 USD
Regular price
Sale price
$24.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
10x10 backyard shed plans are designed with lots of space to store your yard and garden tools and toys.
This shed design includes the following:
- Shed Height: 9'-7" When built on wood floor with rail foundation. (lower when built on concrete slab)
- Floor: 2x6 floor Joists at 16" o.c. with 3/4" floor sheathing.
- Roof Pitch: 4/12 Main roof.
- Roof Overhang: 4" and 1"
- Wall Framing: 6'-7" wall height. 8'-1" wall height can be made by not cutting the 92 5/8" wall studs. 2x4 at 16" o.c.
- Siding: T1-11 or equivalent.
- Trim: 1x4 and 1x6 trim materials may be used.
- Floor Load: 50lbs psf.
- Foundations: Wood rail. Concrete slab. Concrete pier and beam.
- Roof Snow Load: 40 lbs psf. (30 lb live. 10lb dead)
- Other Features:

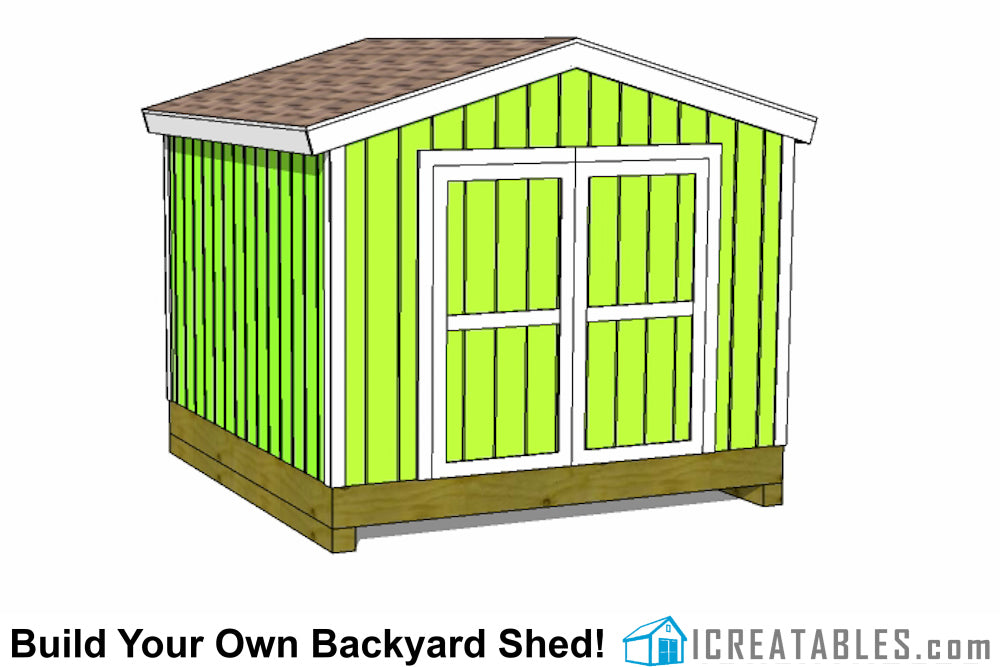

![10x10-B Backyard Shed Plans Emailed](http://icreatables.myshopify.com/cdn/shop/files/10x10G-Gable-shed-front.jpg?v=1689001351&width=1445)

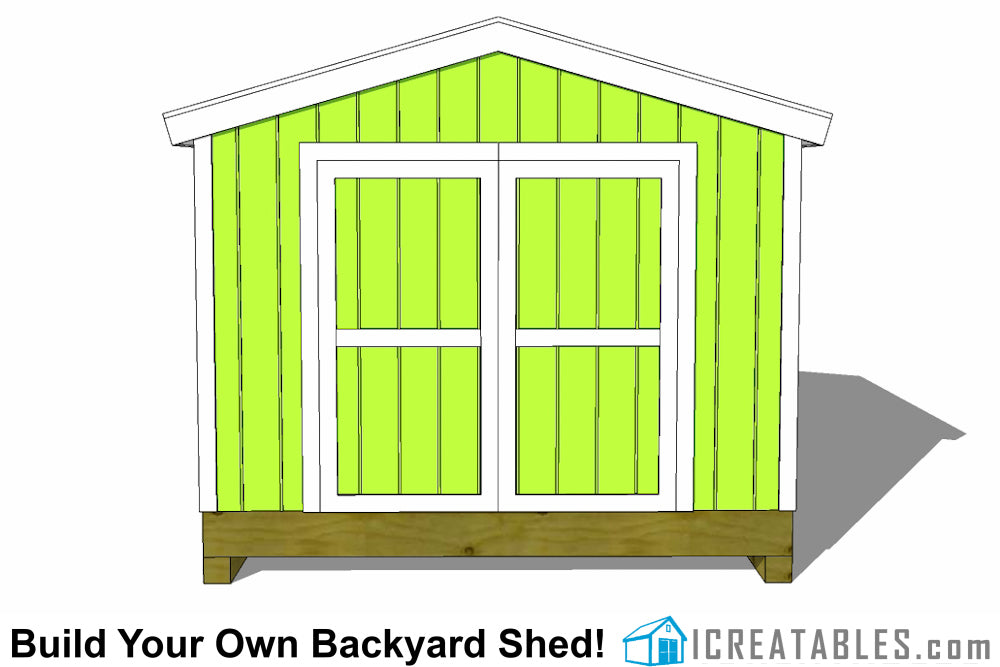

![10x10-B Backyard Shed Plans Emailed](http://icreatables.myshopify.com/cdn/shop/files/10x10G-Gable-shed-end.jpg?v=1689001364&width=1445)

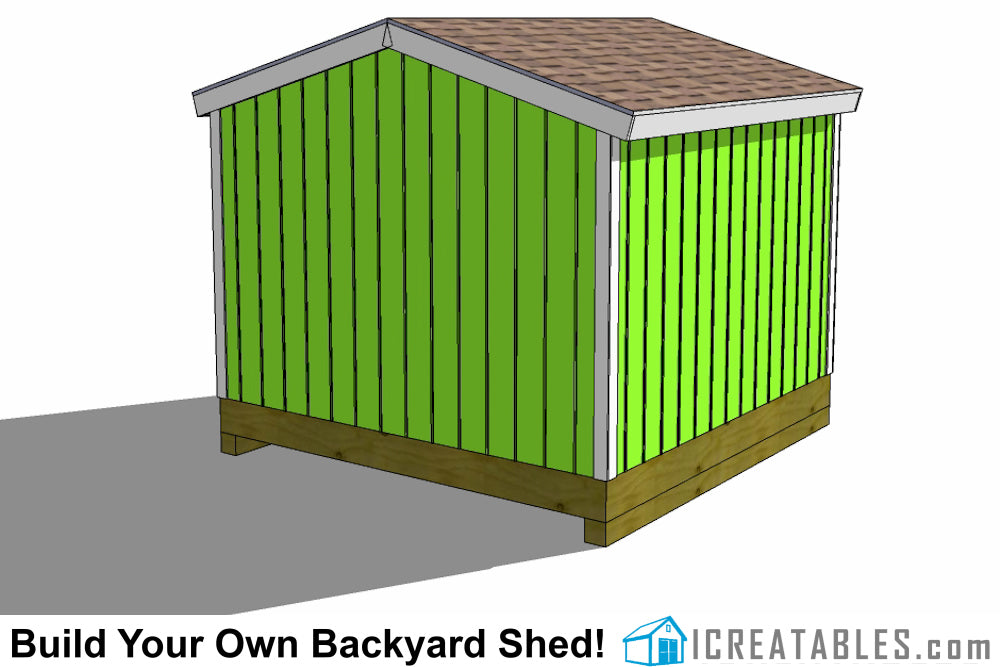

![10x10-B Backyard Shed Plans Emailed](http://icreatables.myshopify.com/cdn/shop/files/10x10G-Gable-shed-rear.jpg?v=1689001374&width=1445)
![10x10-B Backyard Shed Plans Emailed](http://icreatables.myshopify.com/cdn/shop/files/10x10G-Gable-shed-top.jpg?v=1689001384&width=1445)
![10x10-B Backyard Shed Plans Emailed](http://icreatables.myshopify.com/cdn/shop/files/10x10-B-backyard-shed-floor-plans.jpg?v=1689001394&width=1445)

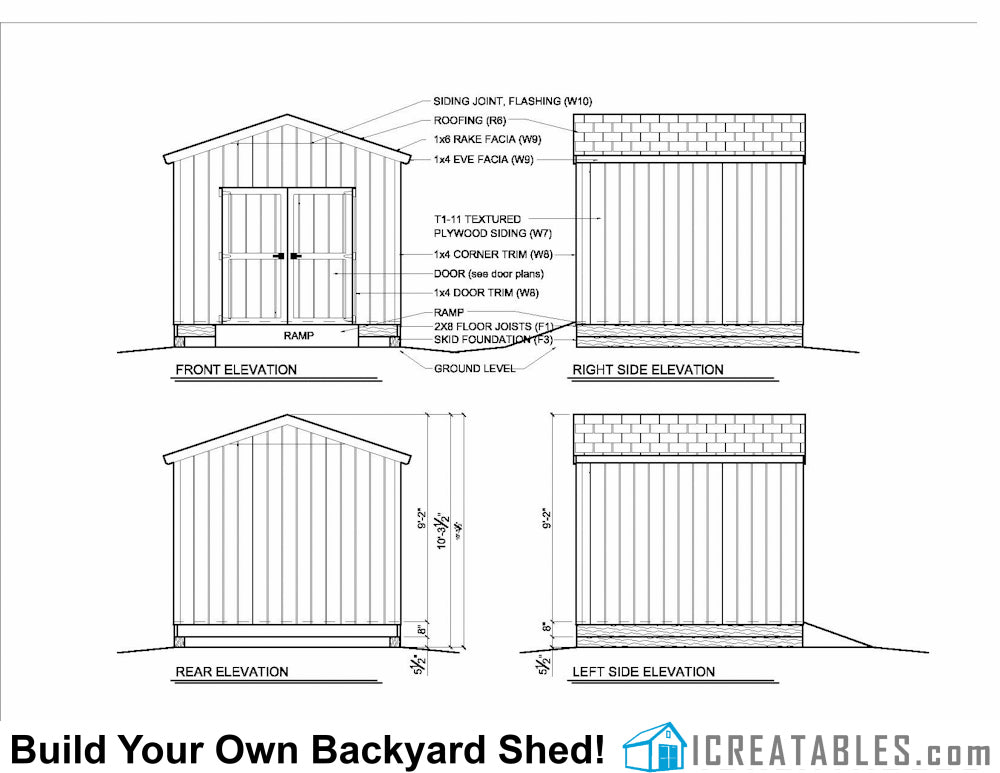

![10x10-B Backyard Shed Plans Emailed](http://icreatables.myshopify.com/cdn/shop/files/10x10G-Gable-shed-elevations.jpg?v=1689001405&width=1445)
![10x10-B Backyard Shed Plans Emailed](http://icreatables.myshopify.com/cdn/shop/files/10x10-B-backyard-shed-plans-example.jpg?v=1689001423&width=1445)
